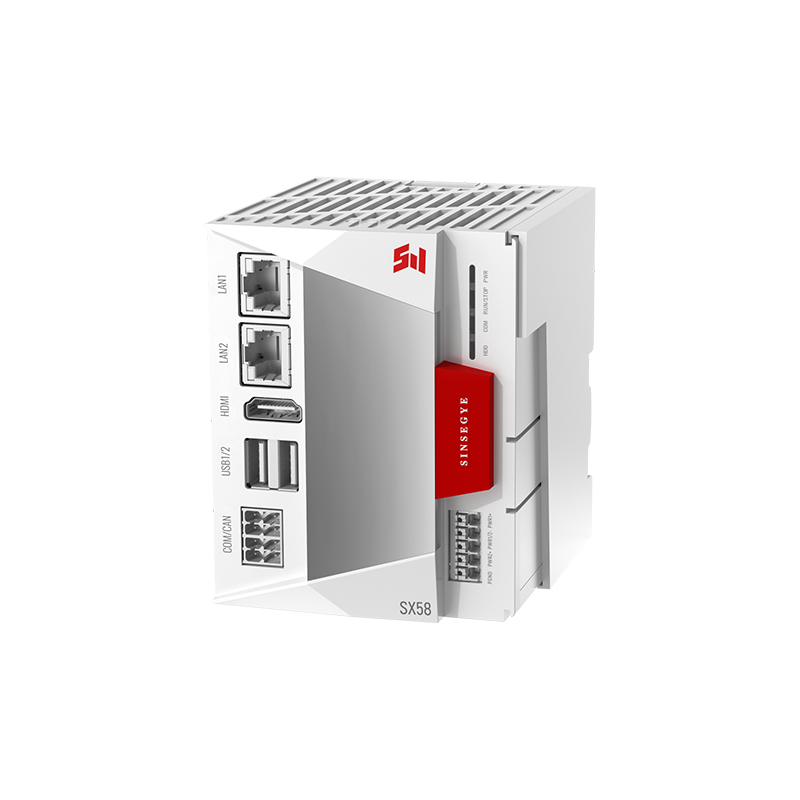

SX5820-0002 | Compact Industrial Intelligent Computer

The SX58 series iComputer is further developed on the basis of the SX5 series iComputer. It has a more compact structure and can be used to achieve various automatic control tasks.

The SX58 series iComputer is an ultra-compact integrated computing and control industrial intelligent computer independently developed by Sinsegye based on its rich experience in industrial control and computers. The SX58 series iComputer is equipped with a low-power Intel Celeron® processor. The main body supports 2 Ethernet interfaces, 2 USB3.0 ports, 1 HDMI port, 1 serial port (configurable RS232/RS422/RS485 interfaces), and 1 CAN port. Meanwhile, the SX58 series iComputer support remote IO modules and high and low speed local expansion modules (adaptive). In addition, the SX58 series iComputer adopt a modular design, with dimensions of only 80*100*90mm, making them suitable for applications that have strict requirements for installation space.

Overview

Model Information

Resources & Download

Product Overview

SX5820-0002 \| Compact Industrial Intelligent Computer
Main System	CPU	Intel Celeron®
	Clock Speed(GHz)	2.0
	Memory(G)	4
	Storage	64G (Expandable)
EtherCAT Slave		Up to 64 (Servo Axes or IO)
Hardware Interface		2 Ethernet ports, 1 HDMI port, 2 USB ports, 1 CAN port, 1 serial port (configurable as RS232/RS422/RS485)
Right-side Local Module Extension		Supports SRE and SRR Series, up to 8 units (without power relay module)
Software Interface	Programming Language	Supports IEC61131-3 (LD/ST/CFC/SFC)
	Program Download	Supports downloading binary target code and user projects (active or passive)
	Program Upload	Support
	Program Encryption	Supports user program, POU, and target file encryption
	Controller Encryption	Supports controller lock/unlock
	Power-down Retention	Support
	Automatically add library	Support
Hardware Interface	Network Port	2
	USB	2
	Serial Port	1*RS232/RS422/RS485
	CAN	1
	HDMI	1
Module Power Supply	Operating Voltage (VDC)	20.4~28.8(-15%~+20%)
	Rated Voltage (VDC)	24
	Consumption Pmax(W)	30
Online System Upgrade		Support
Desktop Operating System		Ubuntu (Default Configuration)
Real-Time Clock (Timekeeping)		Available (15 days), accuracy ±60 seconds/month

Specification

Product Line	Order Model	Description
SX58 Series	SX5820-0001	Main frequency 1.4GHz; 2 network ports, 2 USB ports, 1 RS232/485/422 (software configurable), 1 CAN, 1 HDMI; Directly connected axes can be expanded up to 2; ECAT slaves: 32 (servo axes or IO); USB 3.0 camera: 1 or GigE interface cameras: 1
SX58 Series	SX5820-0002	Main frequency 2.0GHz; 2 network ports, 2 USB ports, 1 RS232/485/422 (software configurable), 1 CAN, 1 HDMI; Directly connected axes can be expanded up to 2; ECAT slaves: 64 (servo axes or IO); USB 3.0 camera: 1 or GigE interface cameras: 1
