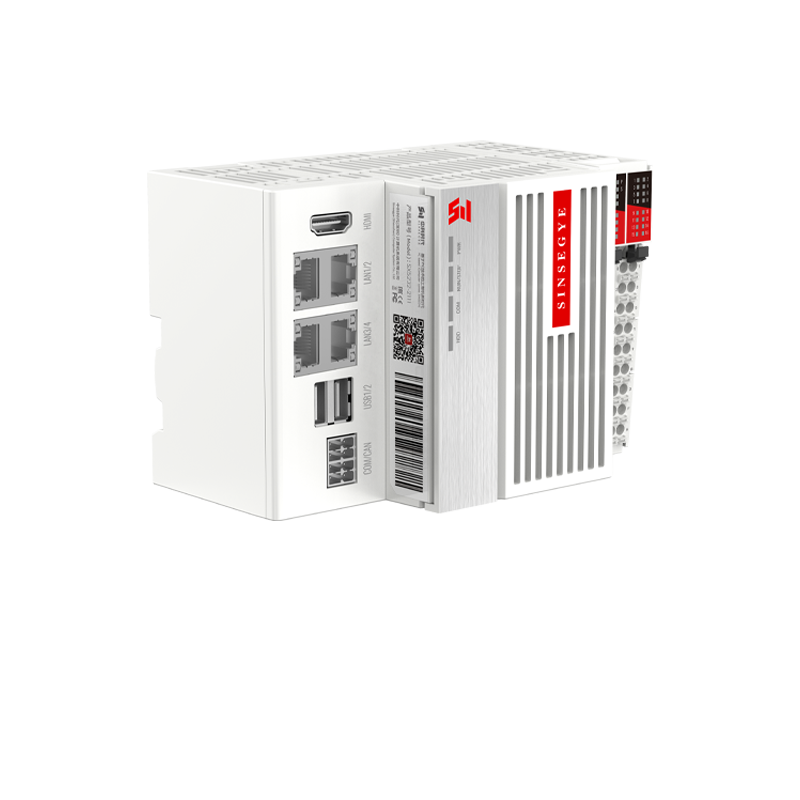

SX5232-1121 | Compact Industrial Intelligent Computer
Product Overview
| SX5232-1121 | Compact Industrial Intelligent Computer | |
| Processor | Intel® N series processors, 2.0GHz |
| Memory | 8 GB |
| Storage | Default 128GB, expandable up to 1TB |
| EtherCAT Slave | 32 (Servo Axis or IO) |
| Interface | 4*RJ45 10/100/1000 Mbit/s 1*HDMI 2*USB 3.0 1*CAN 1*COM (RS232/RS485/RS422 software configurable) |
| Heat Dissipation | Active air cooling |
| Operating System | Windows 10 Enterprise LTSC |
| Installation Method | DIN Rail Installation |
| Power Supply | 24V DC (-15%~+20%) |
| Overall Dimensions(W*H*D) | 142*100*90 (mm) |
| Operating Temperature Range | -20~+60 ℃ |
| Storage Temperature Range | -40~+80 ℃ |
| Ambient Relative Humidity Range | 5~95%，Non-condensing |
| Altitude | ≤3000m (80kPa) |
| Input/Output Specifications | |
| Enter points | 8-channel DI |
| Input Type | Supports PNP/NPN (distinguished by actual wiring) |
| Rated Value | 24V DC |
| "0" Signal | <5V |
| “1”Signal | >15V |
| Allow Static Current | 1mA |
| Insulation Test Voltage | 500V DC |
| Output points | 4-channel DO |
| Output Type | NPN |
| Output Short-Circuit Protection | Yes , Electronic |
| Maximum Lamp Load | 5W |
| Output Current “1” | 0.5A |
| Leakage Current | ＜1mA |
| Input/Output Adaptive | Supports 4-channel adaptive IO (DI01-DI04) |
| Adaptive IO Configuration Instructions | DI01-DI04 adaptive input or output, each channel can be selected to operate as input or output, supports NPN |
| Local Extension | Supports SRE series local expansion modules; with more than 8 modules, a separate power relay module needs to be configured. |
Dimension
| Order Model | Description |
| SX5232-1111 |
Memory: 8GB, Storage: 128GB by default ECAT slave: 32 (servo axes or IO) Main unit IO: 8*DI (supports PNP/NPN), 4*DO (supports PNP), 4*adaptive DI/DO (supports PNP) |
| SX5232-1121 |
Memory 8GB, storage default 128GB ECAT slave: 32 (servo axes or IO) Main unit IO: 8*DI (supports PNP/NPN), 4*DO (supports NPN), 4*adaptive DI/DO (supports NPN) |
| SX5232-2112 |
Memory 16GB, Storage default 256GB ECAT slave: 32 (servo axes or IO) Main unit IO: 8*DI (supports PNP/NPN), 4*DO (supports PNP), 4*Adaptive DI/DO (supports PNP) |
| SX5232-2122 |
Memory 16GB, Storage default 256GB ECAT slave: 32 (servo axes or IO) Main unit IO: 8*DI (supports PNP/NPN), 4*DO (supports NPN), 4*Adaptive DI/DO (supports NPN) |
