SX5100-1010 | Compact Industrial Intelligent Computer
SX5100 | Compact Industrial Intelligent Computer
Products Categories

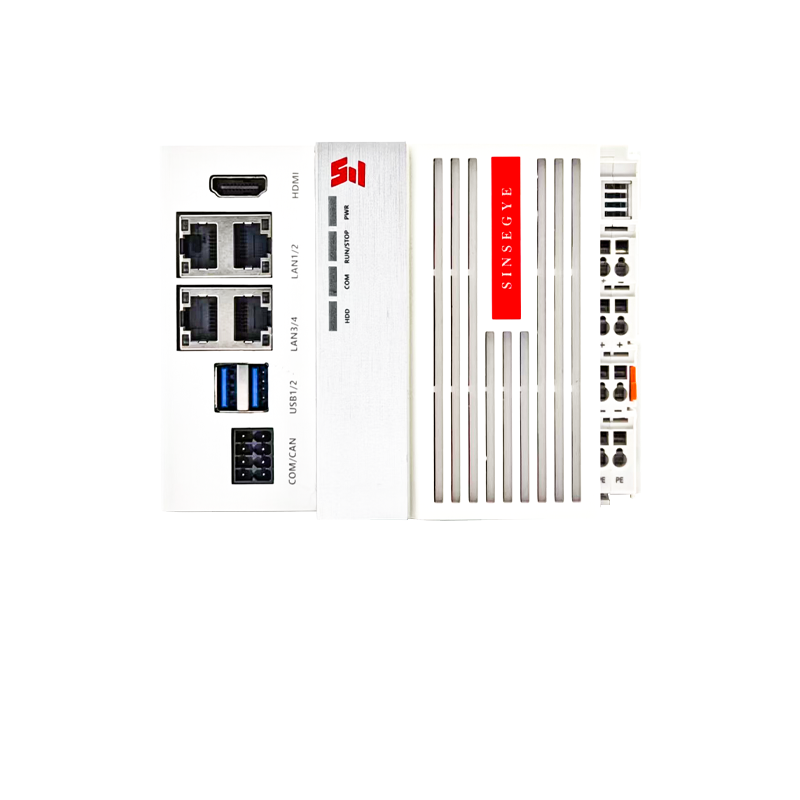

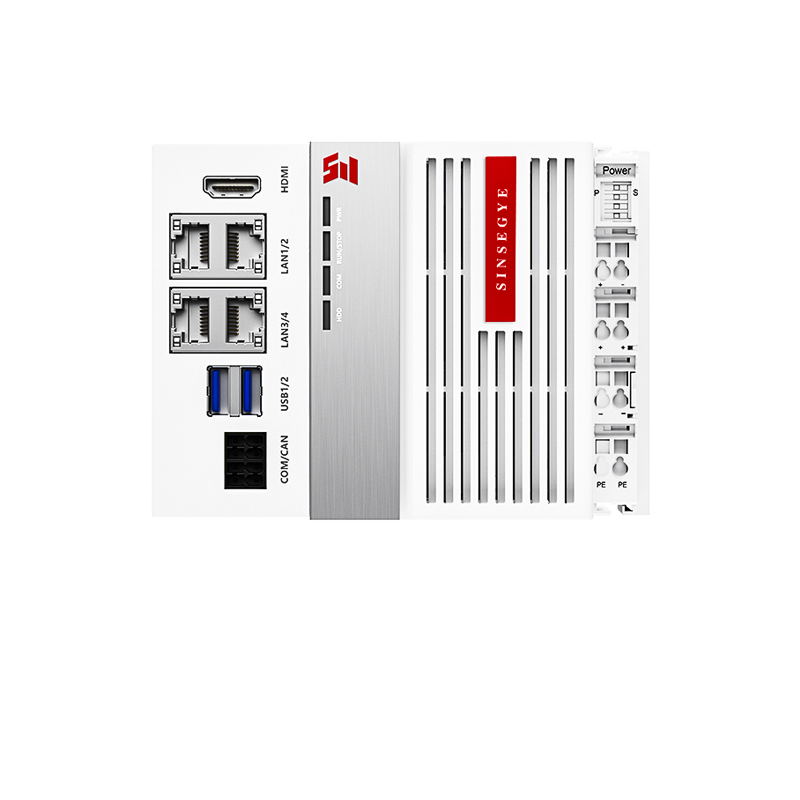

SX5100-1010 | Compact Industrial Intelligent Computer

SX51 series is a new generation of compact embedded PC integrating computing and control independently developed by SINSEGYE relying on its rich experience in industrial control and computer.
SX51 series embedded PC adopts fanless and low-power design, equipped with Intel Atom® processor, and can support up to 4*Gigabit Ethernet, 1*HDMI, 2*USB3.0, 1*serial port (R232/RS422/RS485 optional) and 1*CAN. Besides, SX51 series of industrial intelligent computers shave favorable scalability, supporting the expansion of ordinary IO and process modules, which can realize applications with large demand for I/O scale and complex processes.
Overview
Model Information
Resources & Download

Product Overview

SX5100-1010 | Compact Industrial Intelligent Computer
Main System CPU Intel Atom®
Memory 4G
Storage Default 128GB, expandable up to 1TB
EtherCAT Slave 128 (Servo axis or IO)
Hardware Interface Network Port 4
USB 2
Serial Port 1*RS232/RS422/RS485
CAN 1
HDMI 1
Software Interface Programming Language Support IEC61131-3 (LD/ST/CFC/SFC)
Program Download Supports downloading binary target code and user projects (active or passive)
Program Upload Support
Program Encryption Supports user program, POU, and target file encryption
Controller Encryption Supports controller lock/unlock
Power-down Retention Support
Automatically Add Library Support
Module Power Supply Operating voltage (VDC) 20.4~28.8(-15%~+20%)
Rated Voltage (VDC) 24
Power Consumption Pmax(W) 45
Online System Upgrade Support
Desktop Operating System Ubuntu (Default Configuration)
Real-Time Clock (Maintains Time) Available (15 days), accuracy ±60 seconds/month
Certification CE, FCC, CB, EAC, UKCA

Product Line Order Model Description
SX21 Series SX2133 4* Ethernet ports, 4* USB ports, 1* RS232/RS485/RS422 (software configurable), 1* CAN, 1* HDMI, ECAT slave: 256 (servo axes or IO), USB 3.0 cameras: 4, GigE interface cameras: more than 6, 16GB RAM
SX52 Series SX5232-1111 Memory 8GB, storage default 128GB. ECAT slave: 32 (servo axes or IO). Main unit IO: 8*DI (supports PNP/NPN), 4*DO (supports PNP), 4*adaptive DI/DO (supports PNP)
SX5232-1121 Memory: 8GB, Storage: 128GB by default. ECAT slave: 32 (servo axes or IO). Body IO: 8*DI (supports PNP/NPN), 4*DO (supports NPN), 4*adaptive DI/DO (supports NPN)
SX5232-2112 Memory: 16GB, Storage: 256GB by default. ECAT slave: 32 (servo axes or IO). Body IO: 8*DI (supports PNP/NPN), 4*DO (supports PNP), 4*adaptive DI/DO (supports PNP)
SX5232-2122 Memory: 16GB, Storage: 256GB by default. ECAT slave: 32 (servo axes or IO). Body IO: 8*DI (supports PNP/NPN), 4*DO (supports NPN), 4*adaptive DI/DO (supports NPN)
SX51 Series SX5132-1010 4* Ethernet ports, 2* USB ports, 1* RS232/RS485/RS422 (software configurable), 1* CAN, 1* HDMI, ECAT slave: 32 (servo axes or IO), 4GB memory
SX5132-2010 4* Ethernet ports, 2* USB ports, 1* RS232/RS485/RS422 (software configurable), 1* CAN, 1* HDMI, ECAT slave: 32 (servo axes or IO), 8GB memory
SX5164-1010 4* Ethernet ports, 2* USB ports, 1* RS232/RS485/RS422 (software configurable), 1* CAN, 1* HDMI, ECAT slave: 64 (servo axes or IO), 4GB memory
SX5100-1010 4* Ethernet ports, 2* USB ports, 1* RS232/RS485/RS422 (software configurable), 1* CAN, 1* HDMI, ECAT slave: 128 (servo axes or IO), 4GB memory
SX5100-2010 4* Ethernet ports, 2* USB ports, 1* RS232/RS485/RS422 (software configurable), 1* CAN, 1* HDMI, ECAT slave: 128 (servo axes or IO), 8GB memory
SX58 Series SX5820-0001 Main frequency 1.4GHz, 2* network ports, 2* USB, 1* RS232/485/422 (software configurable), 1* CAN, 1* HDMI, ECAT slaves: 32 (servo axes or IO)
SX5820-0002 Main frequency 2.0GHz, 2* network ports, 2* USB, 1* RS232/485/422 (software configurable), 1* CAN, 1* HDMI, ECAT slaves: 64 (servo axes or IO)

Welcome to Sinsegye OnlineHelp, a comprehensive resource for support, including detailed product manuals, practical help guides, detailed operating instructions, extensive technical documentation, and professionally produced instructional videos. Whether you're a first-time user or an experienced user, the platform provides comprehensive guidance, from basic to in-depth, to help you quickly understand product features and usage. We are committed to making your work more efficient and convenient, while also enhancing your user experience, providing reliable support every step of the way.

🧷Offline Manual（PDF）

🧷Specifications and Dimensions

🧷Configuration File（XML）

🧷Authorization Document
