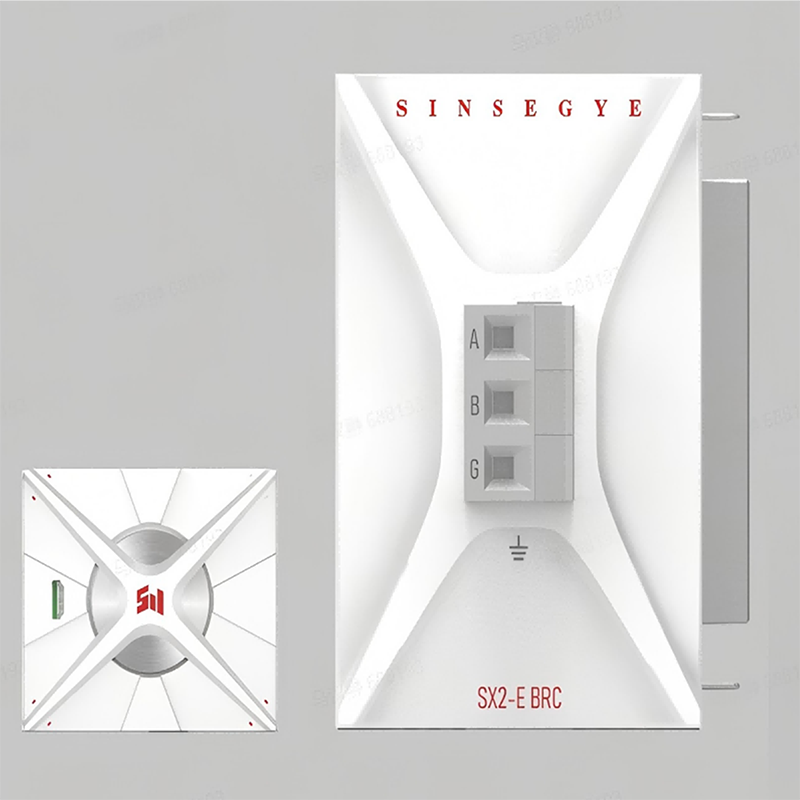

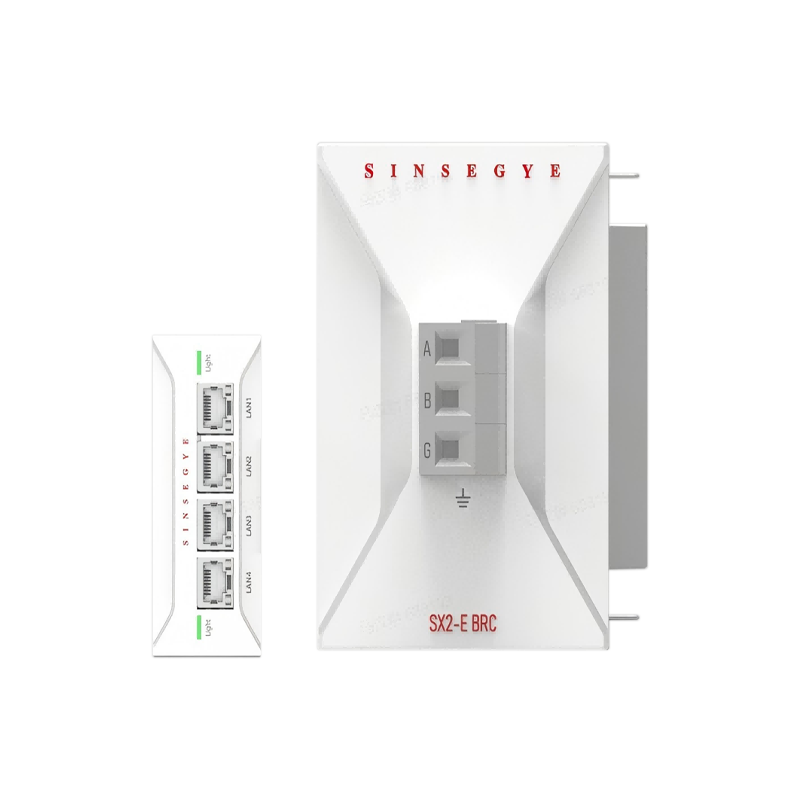

SX2500-0510 B Code Decoding Extension Module

SX2500-0510 B-code Decoding Extension Module

Products Categories

SX2500-0510 B Code Decoding Extension Module

The SX2500-0510 B decoding module is a device specially used for decoding IRIG-B codes. After decoding, it will generate synchronous second pulses and time messages for time calibration of the device. The module has a special 3KV electrical isolation. Even if the RS485 port is damaged by surge, the surge current will not damage the internal circuit and user circuit. At the same time, each port has EMC protection to enhance anti-interference ability. The module has the characteristics of fast processing speed and high output accuracy, which can meet the high-precision requirements of the device for time.

    Product Overview
    Specification
    Dimension
    Documentation
    Certification

    The SX2500-0510 B decoding module is a device specially used for decoding IRIG-B codes. After decoding, it will generate synchronous second pulses and time messages for time calibration of the device. The module has a special 3KV electrical isolation. Even if the RS485 port is damaged by surge, the surge current will not damage the internal circuit and user circuit. At the same time, each port has EMC protection to enhance anti-interference ability. The module has the characteristics of fast processing speed and high output accuracy, which can meet the high-precision requirements of the device for time.

    Physical Properties

    Weight

    ≤0.5Kg

    Operating Temperature

    -40~60℃

    Storage Temperature

    -40~80℃

    Relative Humidity

    5～95%(No Condensation)

    Overall Dimensions

    The width and height are consistent with the network port extension. The length is no more than 100mm

    Electrical Characteristics

    Power Requirements

    P＜1W

    Power Supply Requirements

    Main power supply (No external power supply required)

    Input Interface

    RS485(A/B/GND)

    Mechanical Properties

    Installation

    DIN rail installation (Refer to the host expansion module installation manual)

    Mechanical Dimensions

    60*100*70.5mm

    Performance/Functional Features

    Support System

    Support UBUNTU. Transparent transmission of this module is optional.

    Timing Accuracy

    1ms

    Output Message Protocol

    Modbus-RTU And DLT1100.1-2018 Power regulations (Optional)

    You can download product content in the Sinsegye Technical Drawing Download Area



    🧷Decoding Extension Module-3D Model Diagram
