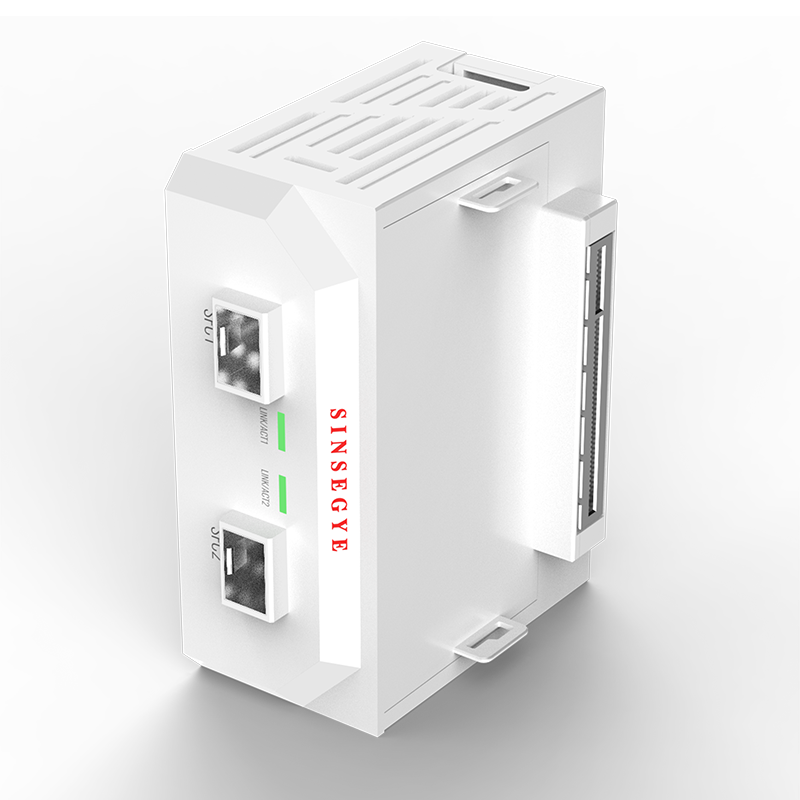

SX2500-0420 Fiber Optic Expansion Module

SX2500-0420 Optical Fiber Expansion Module

Products Categories

SX2500-0420 Fiber Optic Expansion Module

SX2500-0420 is an adaptive gigabit fiber expansion module independently developed by Sinsegye. It can enable the SX2 series host to communicate with third-party peripherals through the fiber port. It can meet the requirements of long-distance transmission, high-speed, and high-bandwidth communication.

    Product Overview
    Specification
    Dimension
    Documentation
    Certification

    SX2500-0420 is an adaptive gigabit fiber expansion module independently developed by Sinsegye. It can enable the SX2 series host to communicate with third-party peripherals through the fiber port. It can meet the requirements of long-distance transmission, high-speed, and high-bandwidth communication.

    Physical Properties

    Weight

    ≤0.5Kg

    Operating Temperature

    -40~60℃

    Storage Temperature

    -40~80℃

    Relative Humidity

    5～95%(No Condensation)

    Electrical Characteristics

    Power Requirements

    P＜10W

    Power Supply Requirements

    Main power supply (No external power supply required)

    Input Interface

    SC optical port connection

    Mechanical Properties

    Installation

    DIN rail installation (refer to the host expansion module installation manual)

    Mechanical Dimensions

    40*100*70.5mm

    Performance/Functional Features

    Support System

    Ubuntu/windows

    Transmission Distance

    550m

    Fiber Wavelength

    850nm（Multimode Fiber）

    You can download product content in the Sinsegye Technical Drawing Download Area



    🧷Fiber Optic Expansion Module-3D Model Diagram

    For more in-depth information, you can visit our "onlinehelp" documentation site by navigating to the "Documents" section in the top menu. There, you’ll find comprehensive guides, FAQs, and other valuable resources to help you better understand our products and services. Alternatively, you can directly access the documentation by clicking the link below. We encourage you to explore these resources to make the most of your experience with us!

    Download:🧷SX2 Expansion module manual package





    See More:



    More Info>>>>

    Below are the relevant certification materials and reports for our company's products. You can click the link below to view them. These documents are provided to help you gain a deeper understanding of our products' compliance and quality standards. If you have any questions during your review or need additional information, please feel free to reach out to your local sales representative. We are committed to offering you prompt and thorough support.



    Continuously Updating>>>
