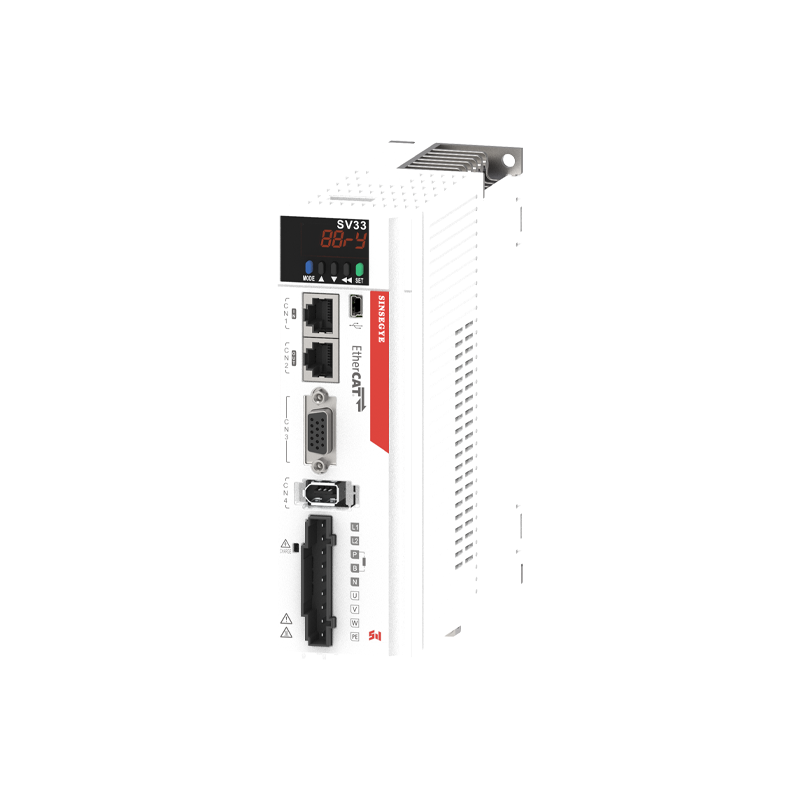

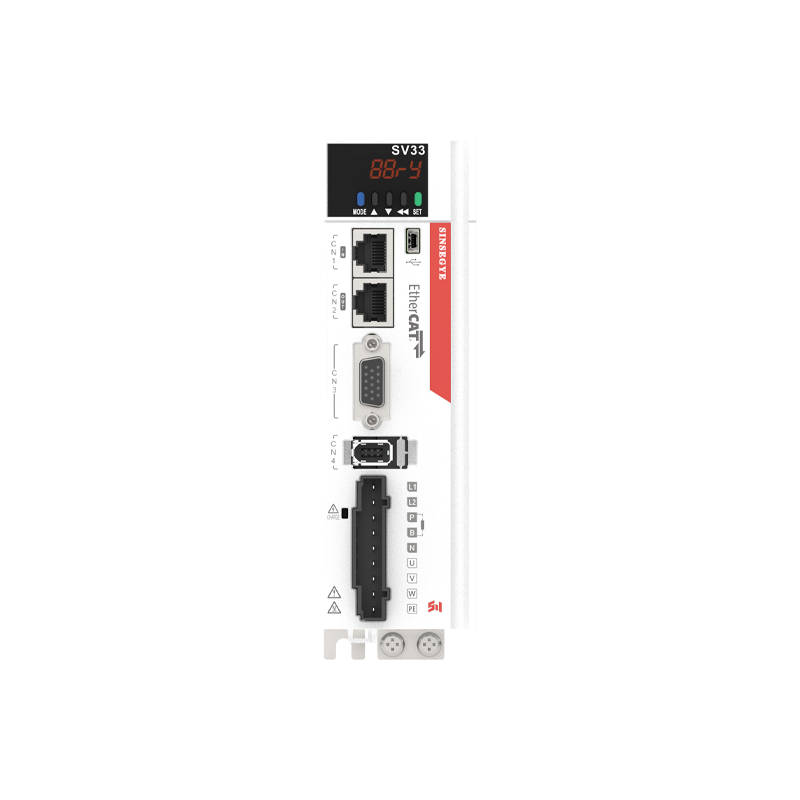

SV33xx | Pulse-Type Servo Driver

The SV3 series of servo products were launched in 2023 and are divided into the SV33 general-purpose servo and the SV35 high-performance servo. Both the SV33 and SV35 series support dynamic braking and weak magnetic functions and feature advanced capabilities such as one-touch auto-tuning, notch filters, and vibration suppression. These features greatly reduce setup time and enhance vibration suppression, improving following performance and shortening tuning time through the addition and improvement of vibration suppression functions.

The SV33 series servos are general AC servo products independently developed by Sinsegye, offering features such as inertia identification and automatic gain adjustment, making the drivers easy to use. The power range of this series is 0.05kW to 2kW, and it supports communication protocols such as pulse and EtherCAT. The SV33 series boasts extreme power density, more than three times overload capacity, a 3kHz speed loop bandwidth, and performance that is at the industry-leading level.

Overview

Technical Specifications

Resources & Download

Product Overview

SV33-E Servo Drive Electrical Specifications	SIZE Type A		SIZE Type B		SIZE Type C
Type SV33	1R6	2R8	5R5	7R6	012	014
Rated output current Arms	1.6	2.8	5.5	7.6	11.6	14.0
Maximum output current Arms	5.8	10.1	16.9	23.0	32.0	42.0
Rated input current Arms	2.3	4.0	7.9	9.6	Single-phase 12.8 / Three-phase 8.0	Single-phase 16.0 / Three-phase 10.2
Main circuit power supply	Single-phase AC 200V～240V, -10～10%, 50/60Hz				Single-phase/three-phase AC 200V～240V, -10～10%, 50/60Hz
Regenerative resistor *2	No standard built-in regenerative resistor
Regenerative resistor *2	–		Optional 50Ω/50W regenerative resistor	Optional 25Ω/80W regenerative resistor

Aircraft Basic Parameters			Description
Basic Specifications	Control Method		IGBT SVPWM control, sinusoidal current drive mode. 220V: single-phase or three-phase full-wave rectification.
	Terms of Use	Operating/Storage Temperature*1	0~+40 ℃/-20~+70℃
		Operating/Storage Humidity	Below 90% RH (no condensation)
		Vibration Resistance	4.9m/s²
		Impact Strength	19.6m/s²
		Protection Level	IP20
		Pollution Level	PD2 Level
		Altitude	The maximum altitude reaches 5000m. No derating is needed at 1000m or below. For altitudes above 1000m, derate by 1% for every 100m increase. Please contact the manufacturer if the altitude exceeds 2000m.
Position Control Mode	Performance	Feedforward Compensation	Supports speed feedforward (0~100.0%) setting to eliminate following error
		Command Shaping	Position command low-pass filtering, mean filtering
	Frequency Division Output	Output Form	Phase A, Phase B, Phase Z: Differential Output
		Frequency range	One rotation of the motor can divide pulses in any ratio within the range of 140 to 1,048,576.
Speed-Torque Control Mode	Performance	Current Loop Dynamic Characteristics	Step response: 187.5 μs (0~100%) Frequency response: -3 dB amplitude attenuation bandwidth, 2000 Hz (command signal: ±25%) -90° phase shift bandwidth, 3500 Hz (command signal: ±25%);
		Speed Control Range	0~12,000 rpm. If you need speeds over 6,000 rpm, please contact the manufacturer.
		Speed Loop Dynamic Characteristics	Step response: 562.5 μs (0~1000 rpm) Frequency response: -3dB amplitude attenuation bandwidth, 1000 Hz (command signal: ±500 rpm) -90° phase shift bandwidth, 630 Hz (command signal: ±500 rpm);
		Torque Control Accuracy	±2%
Input and Output	Digital input signal		Configurable features: forward overtravel switch, reverse overtravel switch, origin switch, etc.
	Digital output signal		Configurable functions: servo ready, zero speed signal, speed reached, position reached, positioning proximity signal, torque limiting, warning, servo fault, etc.
Supported Features	Electronic gear ratio		Built-in two sets of electronic gear ratios, supporting gear ratio switching function
	Limit protection		The forward and reverse limit switches will stop immediately when activated.
	Fault detection		Overcurrent, overvoltage, undervoltage, overload, main circuit detection failure, radiator overheating, overspeed, encoder malfunction, parameter abnormality, etc.
	Display Function		5-digit LED display, power indicator light CHARGE
	Vibration suppression		Equipped with 4 notch filters, ranging from 50Hz to 5000Hz, all 4 notch filters can be set adaptively.
	Ease of use		Self-tuning, speed observer, model tracking
	Debug Interface		MiniUSB
	Others		Status display, alarm records, JOG operation, etc.

EtherCAT Communication Technology Specifications		Specification
Basic Performance of EtherCAT Slave	Communication Protocol	EtherCAT Protocol
	Support Services	CoE（PDO、SDO）
	Synchronous Method	DC - Distributed Clock
	Physical layer	100BASE-TX
	Transmission rate	100 MBit/s (100BASE-TX)
	Duplex mode	Full Duplex
	Topology	Circular, linear
	Transmission medium	Shielded Cat 5e or higher-grade network cable
	Transmission distance	Less than 100m between two nodes (good environment, high-quality cable)
	Number of stations	The protocol supports up to 65,535
	EtherCAT frame length	44 bytes ~ 1498 bytes
	Process Data	A single Ethernet frame can be up to 1486 bytes.
	Synchronous jitter of two slave stations	< 1μs
	Refresh Time	1000 digital input/output signals about 30 μs; 100 servo axes about 100 μs; different refresh times are defined for different interfaces.
	Communication error rate	10⁻¹⁰ Ethernet standard
EtherCAT Configuration Unit	Fieldbus Memory Management Unit	8
	Storage Synchronization Management Unit	8
	Process Data RAM	8 KB
	Distributed Clock	64-bit
	EEPROM Capacity	32kBit initialization data written via EtherCAT master
