SRL Series IO Products

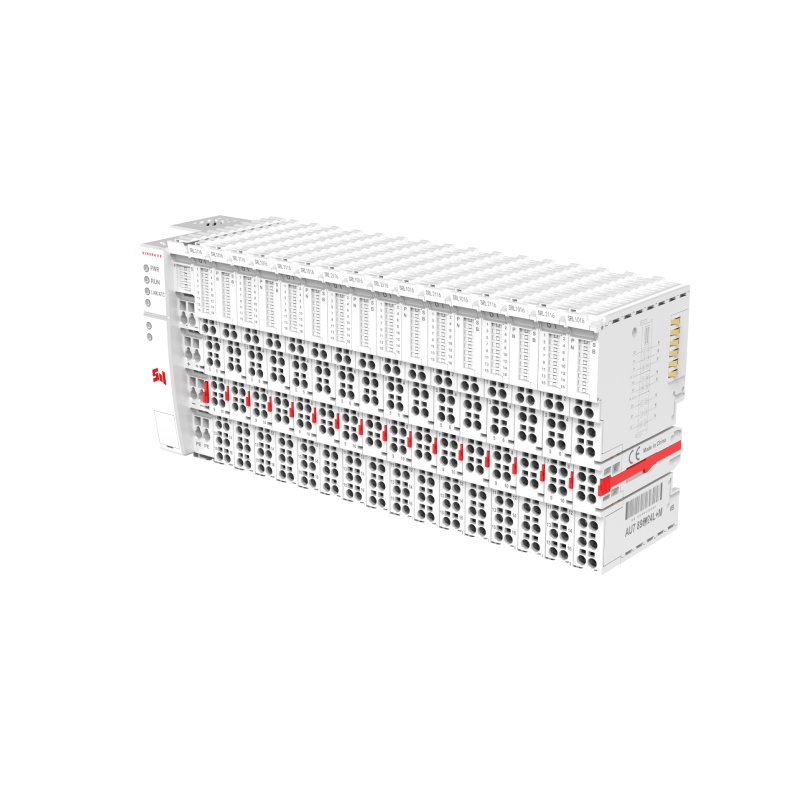

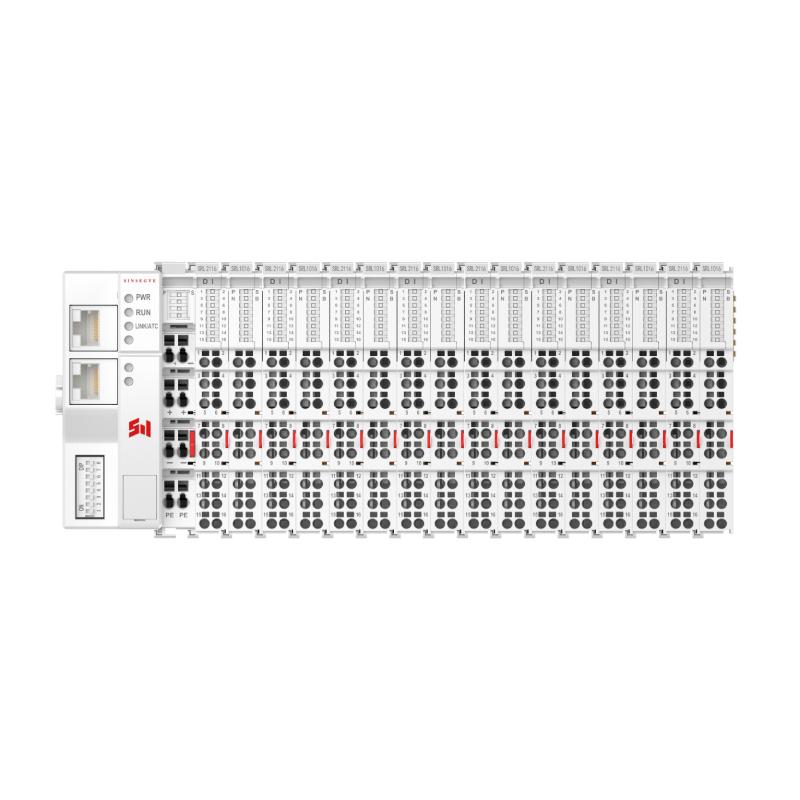

The SRL series IO products use a 100M backplane bus, with a scan cycle as short as 125μs. A single coupler can be expanded to 2048DI, 2048DO, 512AI and 512AO at most, which is suitable for high-speed, high-precision, multi-detection point real-time bus control applications. The SRL series supports more than 30 types of modules. In addition to traditional digital and analog input/output modules, it also provides position acquisition modules and MODBUS master/slave modules, which can easily integrate fieldbus devices including MODBUS into the EtherCAT system.

Overview

Resources & Download

Product Overview

Model	Explanation
SRL1016	16-channel digital input, supports PNP/NPN input
SRL1032	32-channel digital input, supports PNP/NPN input
SRL1332	16-channel PNP input, 16-channel transistor PNP output
SRL1432	16-channel NPN input, 16-channel transistor NPN output
SRL2116	16-channel digital output, NPN transistor type, rated 0VDC (±3V)/0.5A
SRL2216	16-channel digital output, transistor PNP type, rated 24VDC/0.5A
SRL2132	32-channel digital output, transistor NPN type, rated 0VDC (±3V)/0.5A, total per module not exceeding 10A
SRL2232	32-channel digital output, transistor PNP type, rated 24VDC/0.5A, total for a single module not exceeding 10A
SRL3204	4-channel voltage/current input, 16-bit precision
SRL3208	8-channel voltage/current input, 16-bit precision
SRL3274	4-channel RTD input module
SRL3284	4-channel thermocouple input module
SRL3404	4-channel analog multifunction input module, 24-bit precision
SRL3522	Dual-channel Analog Fast Acquisition Module
SRL4204	4-channel voltage/current output, ±10V or 0~20mA, 16-bit accuracy
SRL4208	8-channel voltage/current output, ±10V or 0~20mA, 16-bit accuracy
SRL5012	2-channel high-speed counting module, 2 sets of A, B, C counting inputs, single-ended (rated 24V, maximum 200KHZ, supports PNP/NPN input) or differential (5V, maximum 4MHZ), supports standard counting functions
SRL5034	4-channel high-speed counting module, 4 sets of A, B, C counting inputs, differential (maximum 5V, 4MHz), supports standard counting functions
SRL5234	High-speed pulse output module, 4-axis PTO output, NPN single-ended output up to 400 kHz (at 5V), differential output up to 1 MHz
SRL6002	Serial module with 2 RS422/RS232/RS485 interfaces, supports Modbus RTU and free port protocol, with a maximum baud rate of 115.2 Kbps
SRL6004	Serial module with 4 RS422/RS232/RS485 ports, supporting Modbus RTU and custom protocols, with a maximum baud rate of 115.2 Kbps.
SRL8200	EtherCAT bus, 2 RJ45 ports, high-performance backplane bus, supports up to 64 modules expandable
SRL9001	Power Relay Module
SRL9020	—-
