SP60 iComputer

Products Categories

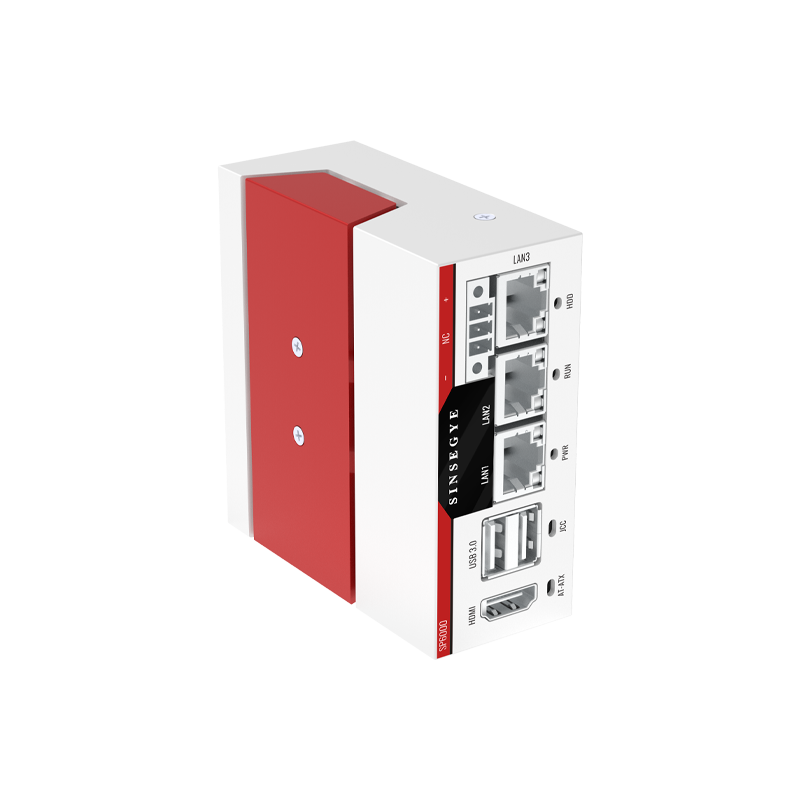

SP60 iComputer

The SP series IPC iComputer is a series of PC-based industrial intelligent general controllers based on X86 architecture launched by Sinsegye. This series of iComputer integrates many functions such as logic control, motion control, industrial vision, HMI, etc., and has the characteristics of localization, integrated computing and control, high real-time performance, and scalability. In addition to providing a wealth of interfaces, some products also support the expansion of the main body I/O and PCIE interface to meet various complex industrial field application requirements.

The SP6000 series IPC-type industrial intelligent computer is a new generation of integrated computing and control industrial intelligent computer independently developed by Sinsegye based on its rich experience in industrial control and computers.

The SP6000 series industrial intelligent computer adopts fanless and low-power design, equipped with the latest Intel Atom processor, and the main body can support up to 3 100M/1000M/RJ45 interfaces, 1 HDMI video interface, 2 USB interfaces, and 3 Phoenix terminal power inputs support 12.4-36V input.

Product Overview

Specification

Dimension

Documentation

Design Drawing

Certificate

Product Overview

The SP6000 series industrial intelligent computer is a new generation of integrated computing and industrial intelligent computers independently developed by SINSEGYE based on its rich experience in industrial control and computers.

The SP6000 series industrial intelligent computer features fanless and low-power design, equipped with the latest Intel Atom processor. It can support up to 3 channels of 100M/1000M RJ45 interfaces, 1 HDMI video interface, 2 USB interfaces, and a 3Pin Phoenix terminal 12.4-36V power input.

Chick here,watch the video of SP60

Specification

Model	SP6000
CPU	Inte Atom®
Operating System	SinsegyeMetaOS(Default desktop system Ubuntu)
Memory	4G（Standard Configuration）
Harddisk	64G（Standard Configuration）
LAN Ethernet	3-Way
Real-time clock (keeping time)	Yes
Power Input	24 VDC
Power	30W
Heat Dissipation Method	Die-cast aluminum integrated heat dissipation
Dimensions	88(Width)85(Height)40(Depth) mm
Hot Swap	Not Support
Failure Isolation	No
Installation	Rail Installation

Dimension

Documentation

For more in-depth information, you can visit our "onlinehelp" documentation site by navigating to the "Documents" section in the top menu. There, you’ll find comprehensive guides, FAQs, and other valuable resources to help you better understand our products and services. Alternatively, you can directly access the documentation by clicking the link below. We encourage you to explore these resources to make the most of your experience with us!

Download:🧷SP60 Series iComputer User Manual

For more manual resources, please visit: ·User Manual Zone

See More:

More Info>>>>

If you're looking to dive deeper and explore more about our products and services, you can easily access additional resources by clicking the link below. Whether you're seeking technical documentation, product guides, or any other relevant materials, we’ve got everything you need to enhance your experience. We hope these resources provide valuable insights and assist you in making the most informed decisions. Feel free to download at your convenience!

More Info>>>>

Below are the relevant certification materials and reports for our company's products. You can click the link below to view them. These documents are provided to help you gain a deeper understanding of our products' compliance and quality standards. If you have any questions during your review or need additional information, please feel free to reach out to your local sales representative. We are committed to offering you prompt and thorough support.

Continuously updating>>>
