SO3110 MetaOS+Windows10

SO3110 MetaOS+Windows10

Products Categories

SO3110 MetaOS+Windows10

Windows is currently the most widely used PC operating system in the world and is the desktop and usage environment that users are most familiar with. Sinsegye uses virtualization technology to run virtual machines in the non-real-time domain of MetaOS, allowing the Windows operating system to run in virtual machines. Its virtualization overhead is less than 7%, providing convenient services for engineers who need to use and deploy applications through Windows and develop through the Window environment. Windows 10 is a classic Windows version with good stability, a large audience and good adaptation to applications. At the same time, its LTSC trimmed version has more streamlined services, which reduces CPU and memory usage and runs more smoothly.

    Product Overview
    Documentation
    Resource Downloads
    Onlinehelp

    Windows is currently the most widely used PC operating system in the world and is the desktop and usage environment that users are most familiar with. Sinsegye uses virtualization technology to run virtual machines in the non-real-time domain of MetaOS, allowing the Windows operating system to run in virtual machines. Its virtualization overhead is less than 7%, providing convenient services for engineers who need to use and deploy applications through Windows and develop through the Window environment. Windows 10 is a classic Windows version with good stability, a large audience and good adaptation to applications. At the same time, its LTSC trimmed version has more streamlined services, which reduces CPU and memory usage and runs more smoothly.

    MetaOS is a self-developed and industry-leading industrial dual-domain operating system by Sinsegye. It is a Subject-Matter Expert in the digital computer/industrial control field based on the in-depth understanding of computer systems by the Institute of Computing Technology , the Chinese Academy of Sciences. After years of research and cooperative development, it has the characteristics of high stability and reliability, hard real-time, and calculation and control integration .

    MetaOS official website：

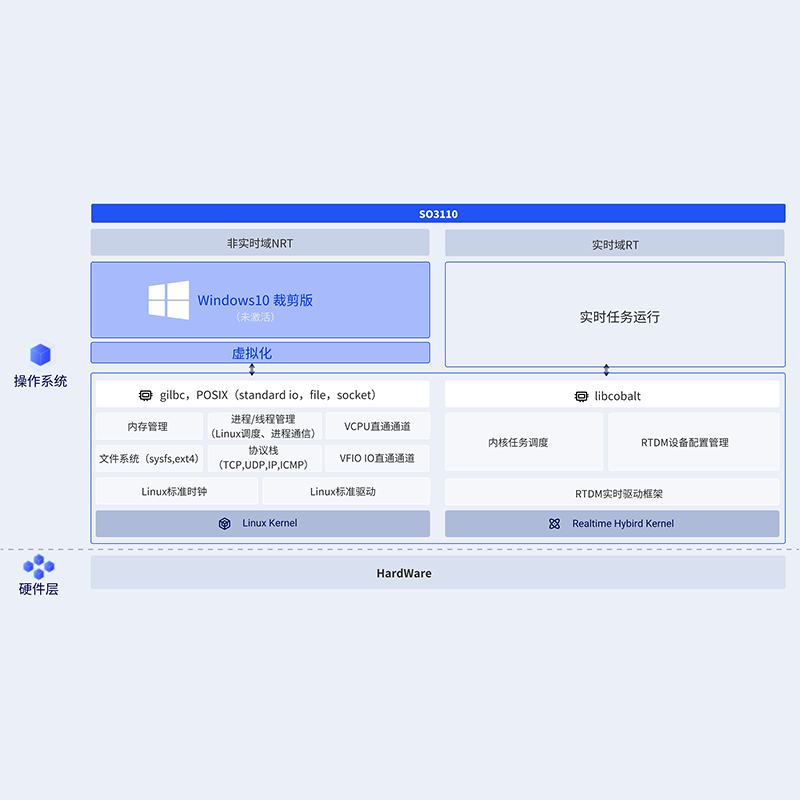

    MetaOS has built a dual-core system framework that seamlessly runs in parallel Linux kernel and real-time kernel. The real-time kernel handles all key activities, such as handling interrupts and scheduling real-time threads, completing hard real-time tasks with strict time requirements, and the Linux kernel handles soft real-time tasks without strict time requirements, such as vision, CAM, HMI, WEB, etc. The priority of the real-time kernel is higher than that of the Linux kernel, which preferentially holds resources and handles interrupts. The dual cores run independent systems, both Linux system and real-time system, called domains. Therefore, this dual-core architecture operating system is a dual-domain operating system.

    MetaOS supports CPU platforms such as X86. Based on virtualization, hardware resources such as CPU, memory, network interface card, and disk are fine-grained and allocated to real-time and non-real-time domains. Virtualization technology isolates the two domains, runs independently of each other, and does not interfere with each other. Each domain can use its own exclusive hardware resources to perform tasks. Such architectural characteristics naturally have high stability and reliability.

     For more detailed information, you can visit our Download Center by navigating to the "Documents" section in the top menu. There you can find comprehensive guides, FAQs and other valuable resources to help you better understand our products and services. Or you can visit directly by clicking the link below.



    Please visit the Sinsegye-Download Zone to download product content: ·Sinsegye Resource Download Zone

    Welcome to the Onlinehelp document platform of Sinsegye ! It brings together a full range of resources and support, including detailed product manuals, helpful manuals, detailed how-to guides, extensive technical documentation, and professionally produced instructional videos. Whether you're a first-time user or an experienced user, the platform provides you with guidance from the basics to in-depth to help you quickly understand the features of the product and how to use it. We're committed to making your work more efficient and convenient, while enhancing your experience and providing you with reliable support every step of the way.





    Related Documentation：



    More Info>>>
