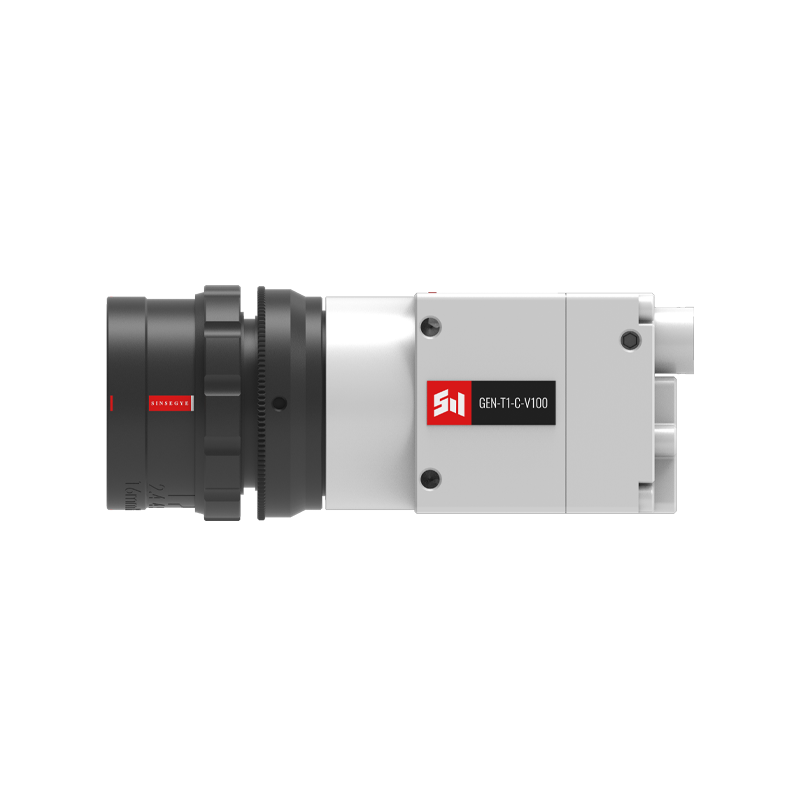

SG Series Ethernet Industrial Camera

Product features of the SG series Gigabit industrial area array camera

·Gigabit network transmission (maximum speed 1Gbps)

·Universal fixed holes, compact size

·Supports POE power supply (compliant with IEEE 802.3at standard)

·Large-capacity frame cache and packet retransmission technology ensure reliable and real-time transmission

·Supports 2. GenICam

·Built-in ISP, supporting Gamma, contrast, and LUT, reducing the CPU consumption of the host

·Supports DHCP, LLA, and auto-follow network card modes

· Adaptive giant frame adjustment, plug and play

Overview

Model	SG2001-0130 Color 1.3-megapixel gigabit industrial camera
Performance parameters
Sensor type	CMOS,Global shutter
Resolution	1280×1024
Sensor Target surface size	1/2.7"，Diagonal 6.5mm
Pixel size	4μm×4μm
Color	Colorful
Maximum frame rate	93FPS@1280×1024 RGB24
Dynamic range	68.5 dB
Bit depth	Max 12bit
Gain	1x～15.5x； 0.2x
Exposure time	3μs~10sec，Step forward 1μs
Exposure mode	Supports automatic exposure/manual exposure/single exposure
Output image format	RGB24
Pixel Merging (BIN)	No
Trigger mode	Hardware trigger, software trigger
Image cache	1Gbit
ISP Function	Contrast, LUT, Gamma, noise reduction, supports horizontal and vertical mirroring
Electrical characteristics
Data interface	1000Mbps network port, RJ45 connector with fixing screw holes
I/O Interface	1 optocoupler input, 1 optocoupler output, 1 bidirectional IO (without optocoupler isolation)
Power Supply	POE power supply or DC 12-24V (±10%) power supply
Typical power consumption	2.2W@24VDC
Structural and environmental parameters
Lens Interface	C port, optical rear focal length 17.5mm
IO and power interface	6-core industrial circular connector
Filter	380nm-650nm Bandpass filter
Overall Dimensions	29mm×29mm×31.5mm(Excluding the lens interface)
Weight	About 51.6g
IP Protection grade	IP40（Under the premise of correctly installing the lens and cables）
Temperature	Working temperature：-10℃~50℃，Storage temperature：-20℃~70℃
Humidity	5% ~ 90%RH（No condensation）
Software and Protocols
Software	SDK development kits and related demonstration/calibration software BasedCam3
Operating System	Windows7/10 32/64bit；PC Linux 32/64bit
Protocol/Standard	GigE Vision V1.2，GenICam
Compatible Software	NI MAX，Halcon，VisionPro，MV Viewer，MVS
