I/O & Accessories

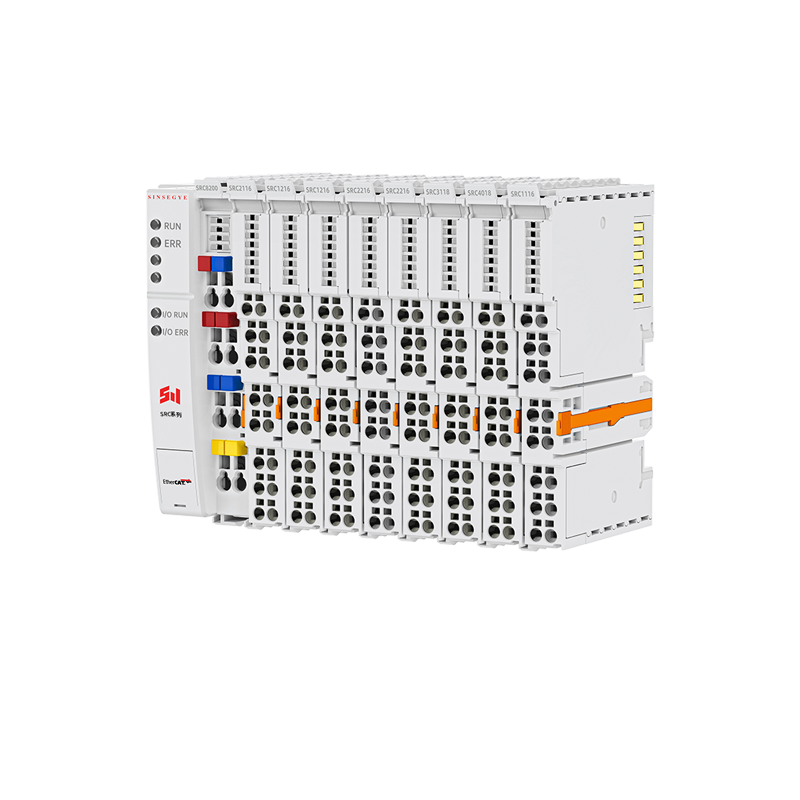

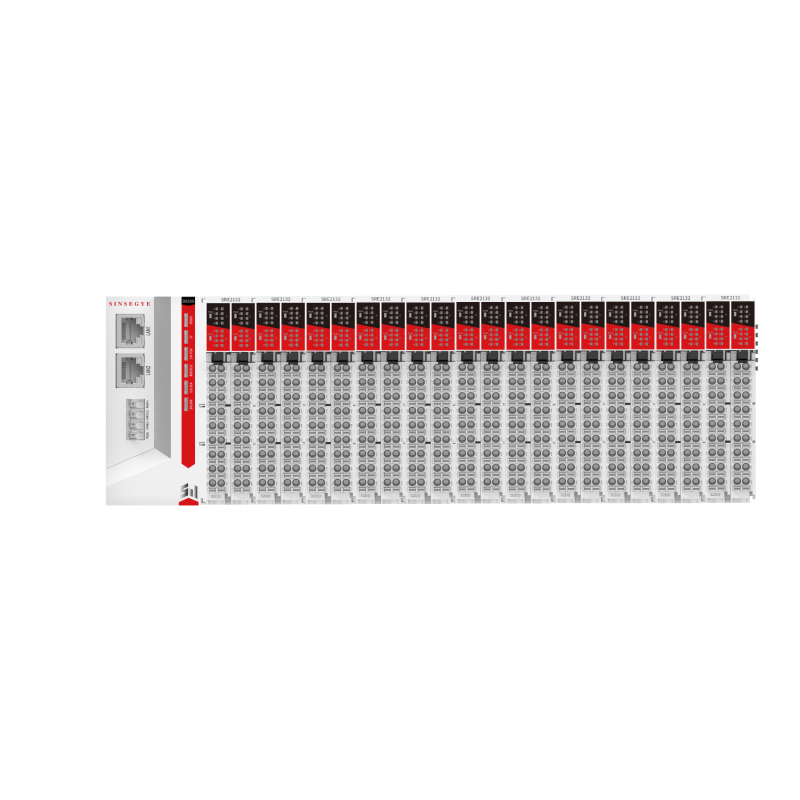

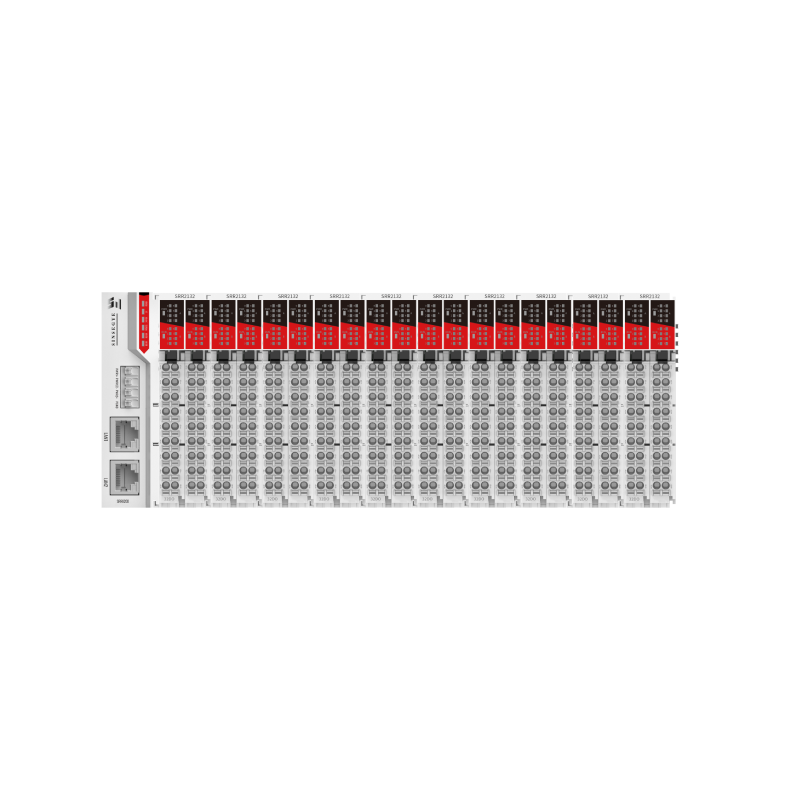

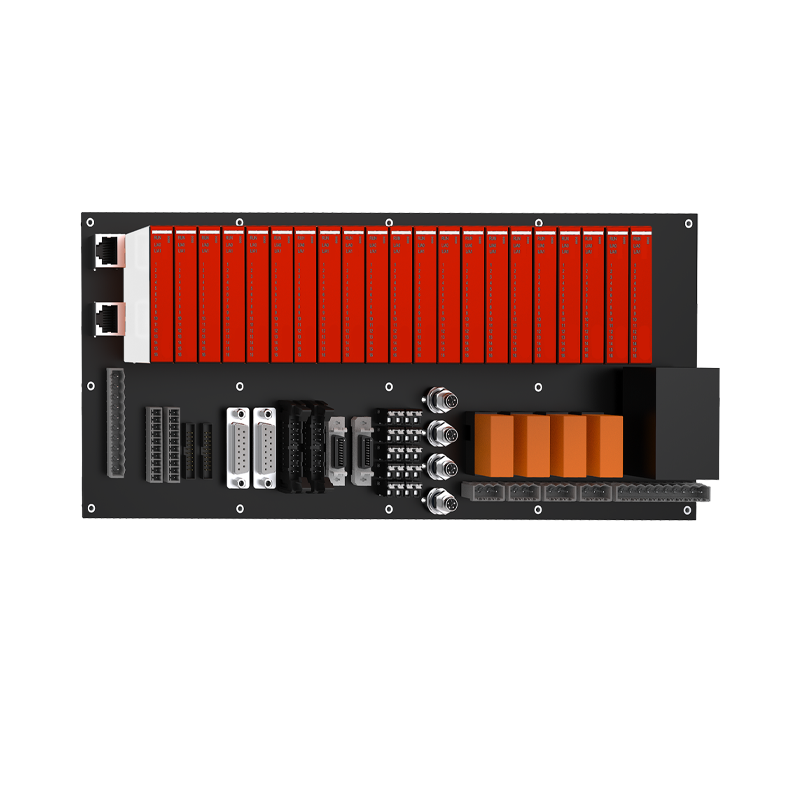

The plug-in I/O terminal adopts a combination structure of coupler module, power module, and I/O terminal. The coupler connects expandable I/O terminals to a real-time industrial Ethernet system, and the backplane uses SC bus. The coupler module is responsible for fieldbus communication, thereby achieving real-time data exchange between I/O terminals and couplers/controllers.

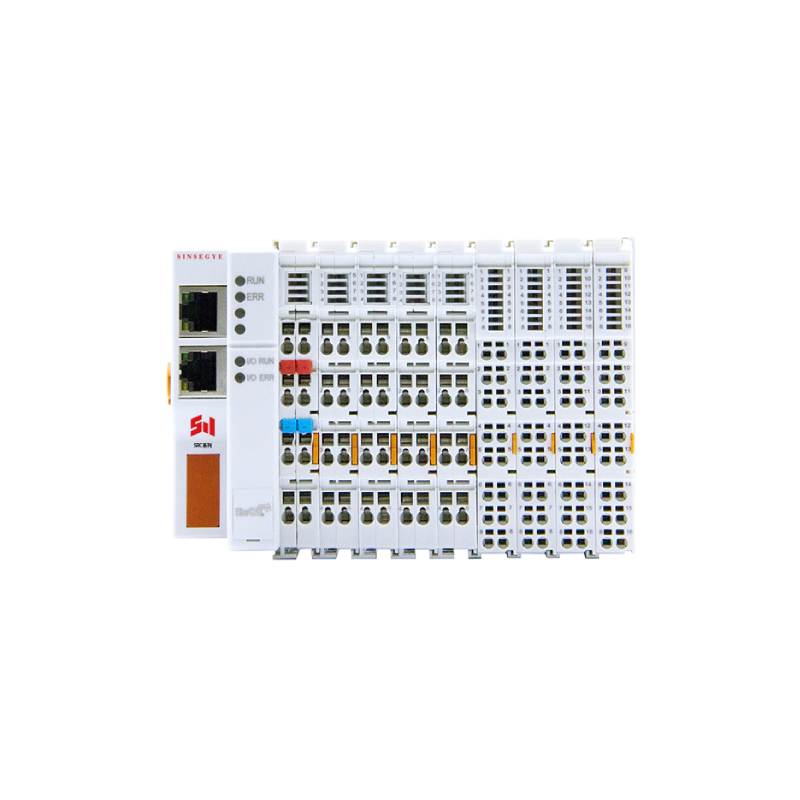

The SRT series I/O modules are high-performance plug-in remote I/O solutions launched by Sinsegye, specifically designed for industrial automation scenarios. This series of modules adopts a modular architecture, supports flexible expansion, and features high real-time performance, strong compatibility, and easy maintainability.

Product features：
·There are many types of adapters, supporting mainstream fieldbuses and industrial Ethernet

·IO is complete and continuously released in accordance with market demand

·Excellent backplane bus, "zero" delay in data transmission

·Small in size, it saves installation space

·All products in the series have passed the CE certification (some products are in the process of certification), and their performance is stable

·All electrical features comply with the IEC61131-2 standard, and the diagnostic functions are rich

·Support remote diagnosis and maintenance

·Special function IO can be customized and developed for users

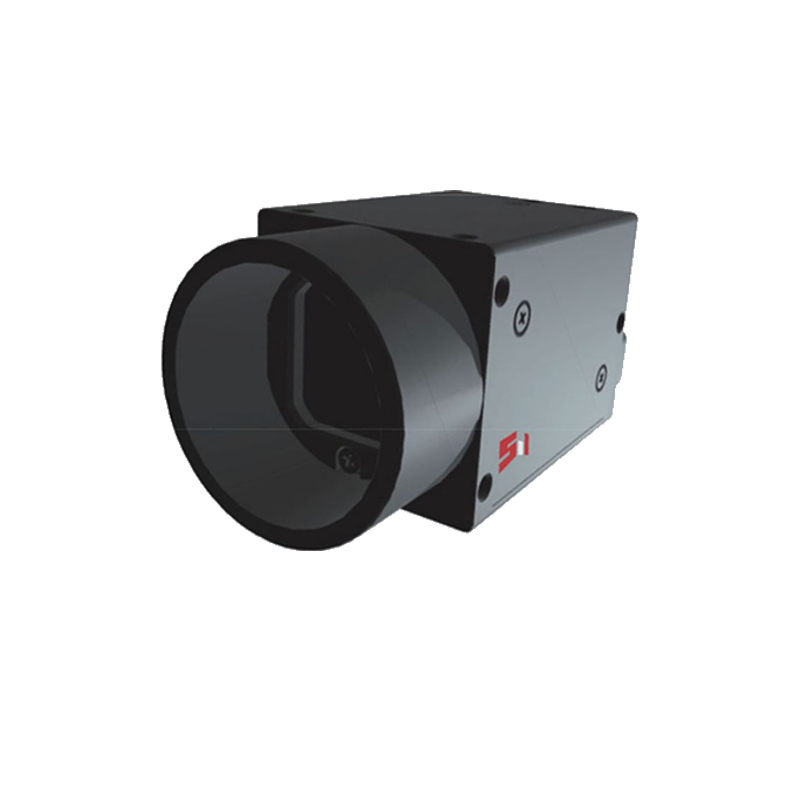

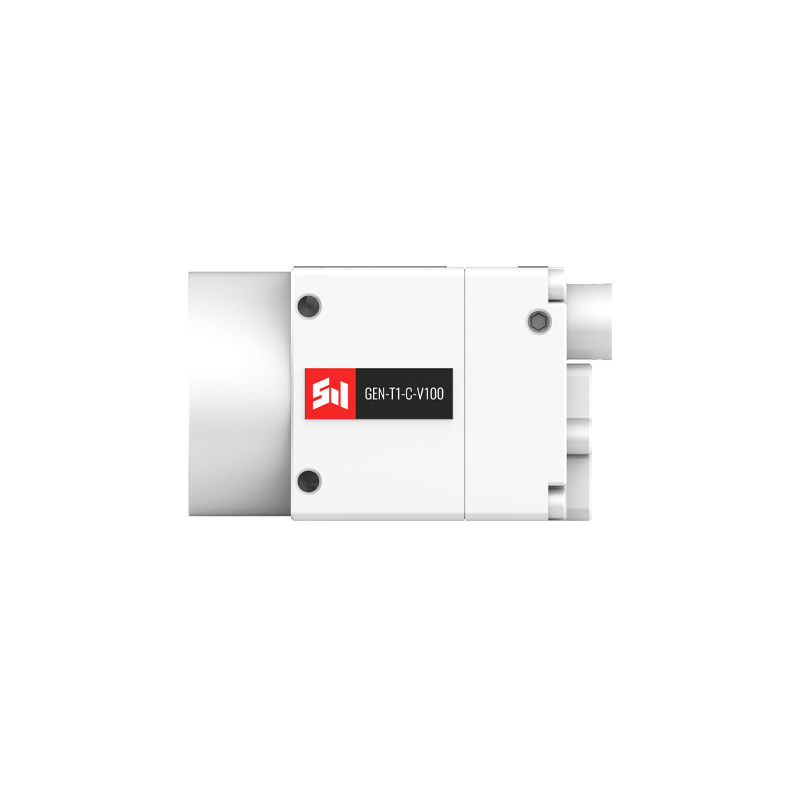

Product features of the SG series Gigabit industrial area array camera

·Gigabit network transmission (maximum speed 1Gbps)

·Universal fixed holes, compact size

·Supports POE power supply (compliant with IEEE 802.3at standard)

·Large-capacity frame cache and packet retransmission technology ensure reliable and real-time transmission

·Supports 2. GenICam

·Built-in ISP, supporting Gamma, contrast, and LUT, reducing the CPU consumption of the host

·Supports DHCP, LLA, and auto-follow network card modes

· Adaptive giant frame adjustment, plug and play

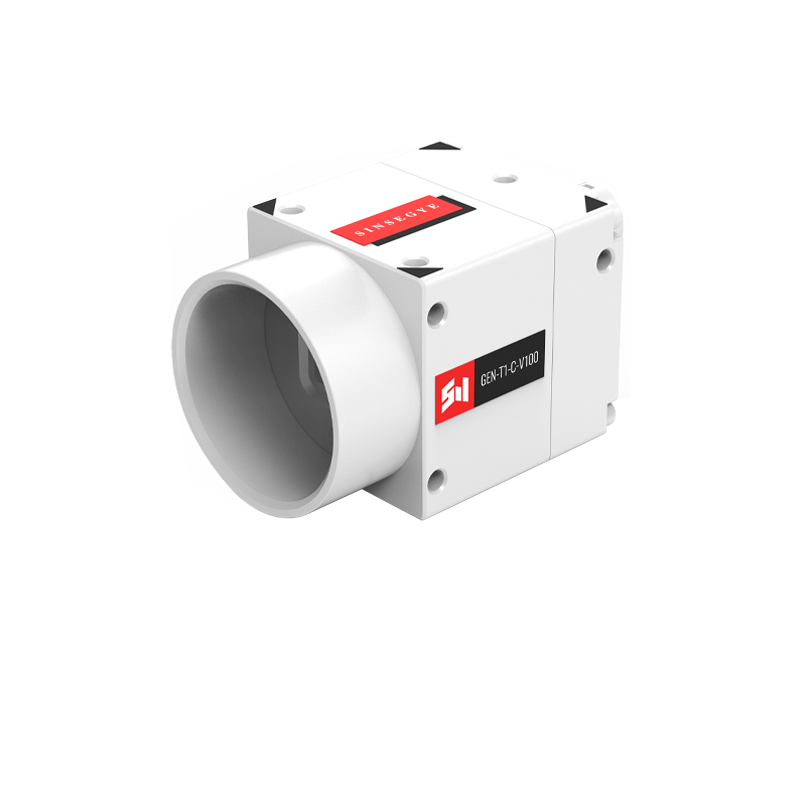

Product features of the SG series Gigabit industrial area array camera

·Gigabit network transmission (maximum speed 1Gbps)

·Universal fixed holes, compact size

·Supports POE power supply (compliant with IEEE 802.3at standard)

·Large-capacity frame cache and packet retransmission technology ensure reliable and real-time transmission

·Supports 2. GenICam

·Built-in ISP, supporting Gamma, contrast, and LUT, reducing the CPU consumption of the host

·Supports DHCP, LLA, and auto-follow network card modes

· Adaptive giant frame adjustment, plug and play

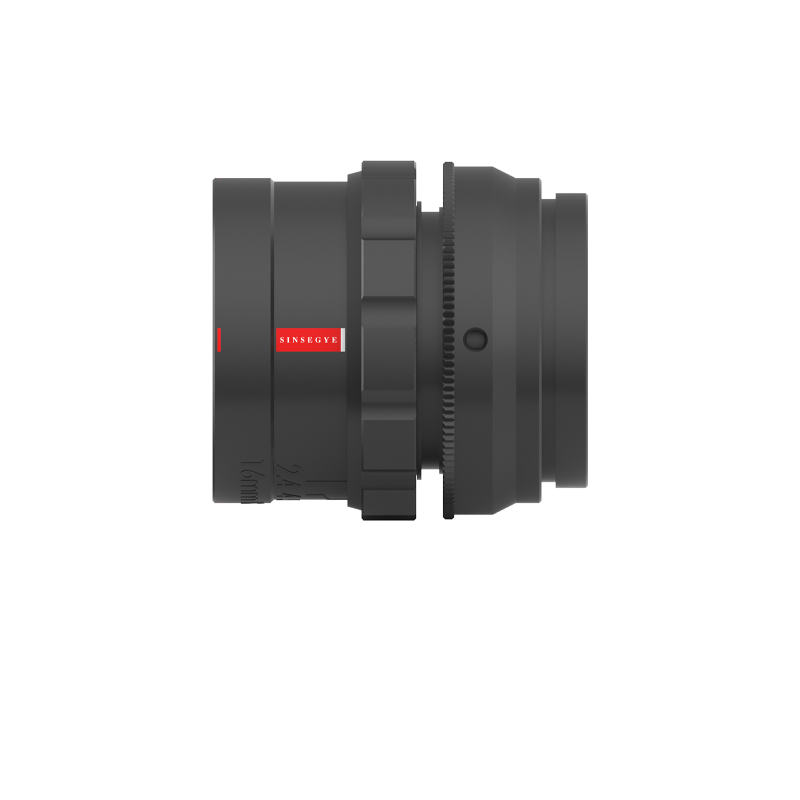

The Sinsegye SL2000 series industrial optical lenses have the following features:

1.High resolution: 8-megapixel 2.74μm chip

2. Low distortion design: -0.51%@300mm working distance

3. Non-thermal: No false coking within the temperature range of -20℃ to +60℃

4. Large-stroke focusing range :100mm to infinity without the need for an extension circle

5. Two types of C interface options: hand-tightening locking method and clamping method

6. Shock-resistant lenses can be quickly customized

The SI20 series industrial light source ‌ is a high-brightness modular light source independently developed by Sinsegye. This series of light sources adopts the third-generation high uniformity LED array technology, supporting stepless brightness adjustment (0-100%), stroboscopic synchronous triggering and multi-channel independent control functions. Users can select the corresponding functions to achieve customized support such as multi-source networking, light intensity curve programming, and abnormal light attenuation early warning.

The standard annular light source has the following product features:
·It adopts a high-density LED array with high luminous flux.

·By default, it is paired with a diffuser plate for more uniform light output.

·Compact structure design saves installation space.

The standard surface light source has the following product features:

·It adopts a high-density LED array with uniform distribution.

·Good uniformity and adjustable high brightness.

·Compact structure design for easy installation.

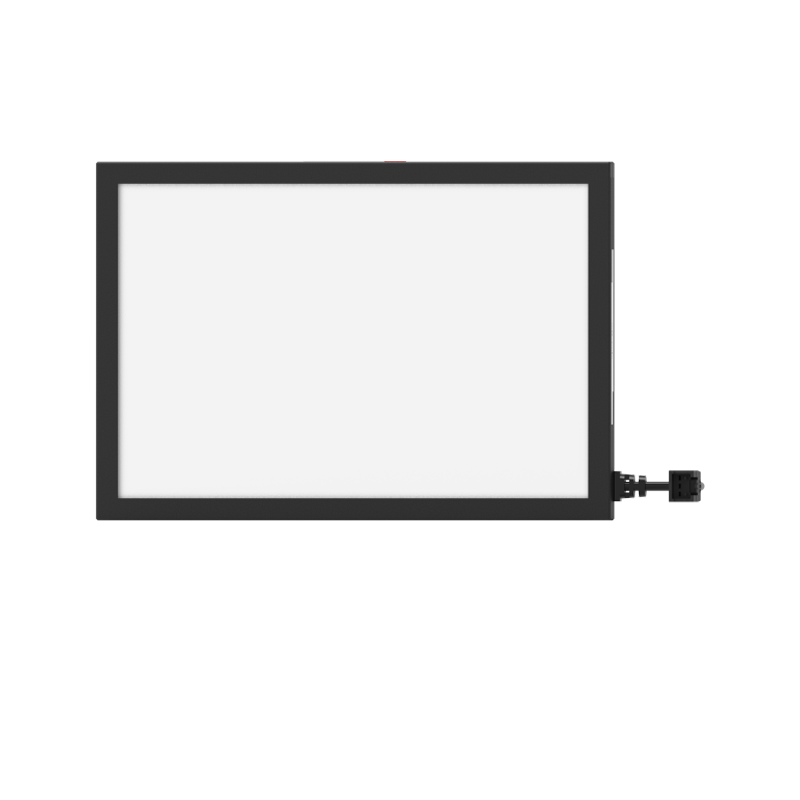

The SI2003-F1510W standard surface light source is mainly applied in scenarios such as dimensional measurement, liquid detection, contour detection, and stain detection.

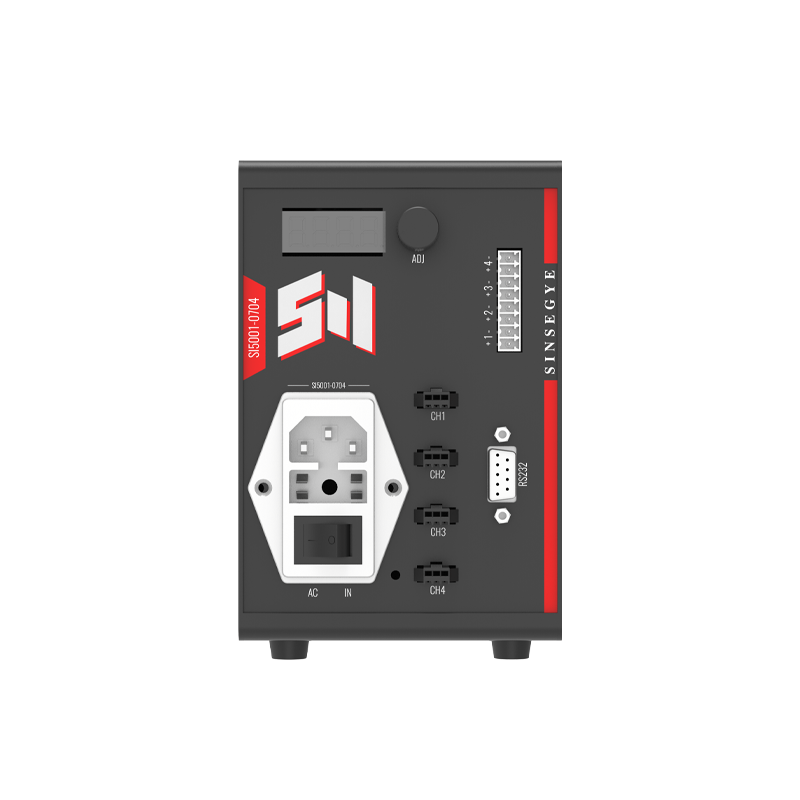

SI5001-0704 Sinsegye New Generation Control Function Controller

·The brightness of the light source can be adjusted manually or through software.

· Flexible to use, each channel can be adjusted independently.

·The operation is simple and the display is intuitive. The 4-digit digital tube clearly shows the current channel brightness level.

·It can be externally triggered, flexibly controlled and has a fast response speed.

·The parameters can be set to not be saved when power is off and to be automatically saved when power is off.

·The controller can communicate with a PC via a serial port.

The SD-V3012 series industrial IEPE accelerometer simultaneously measures vibration and temperature. The accelerometer consists of an internal circuit and a dual-wire IEPE system, which transmits its low-impedance voltage output through the same cable to provide a constant current power supply. The integrated thermal sensor transmits the output temperature through a voltage signal. The signal is internally shielded and isolated from the housing. Polarity inversion protection in amplification circuits is inherent in circuit design. The welded stainless steel structure provides a sealed housing. The standard M12 glass insulated connector offers long-term stability within the operating temperature range. In addition to adhesive installation, the SD-V3012-100 also has 14-28 threaded holes for installing studs on the test object.

The SD-V3012 series offers a wide frequency response and shock resistance, making it an ideal choice for industrial vibration monitoring in environments with associated shocks. The model 22A-L of the cable is a sensor matched with an M12 connector.

SD-V3012-100 is suitable for monitoring the following equipment:

·Fan and pump equipment

·Compressor

·Gearbox

·Bearing

The SD-V3207 series machine condition monitoring and diagnostic instrument collects data on equipment acceleration, speed and temperature. Through the embedded intelligent diagnostic algorithm, it can warn and predict faults of rotating equipment.

The machine condition monitoring and diagnostic instrument is suitable for rotating equipment such as pumps, fans and motors. It can be effectively applied in industrial fields such as petroleum, chemical engineering, steel, water conservancy, cement and mining.

· Multi-data acquisition: Three-axis acceleration and velocity monitoring, capable of uploading waveform and spectral data; Equipment surface temperature monitoring.

·High precision: Frequency response range 0.1Hz to 10KHz (Z-axis).

·High reliability: Wide applicability with different installation methods; Battery life: 2 years (under default working conditions).

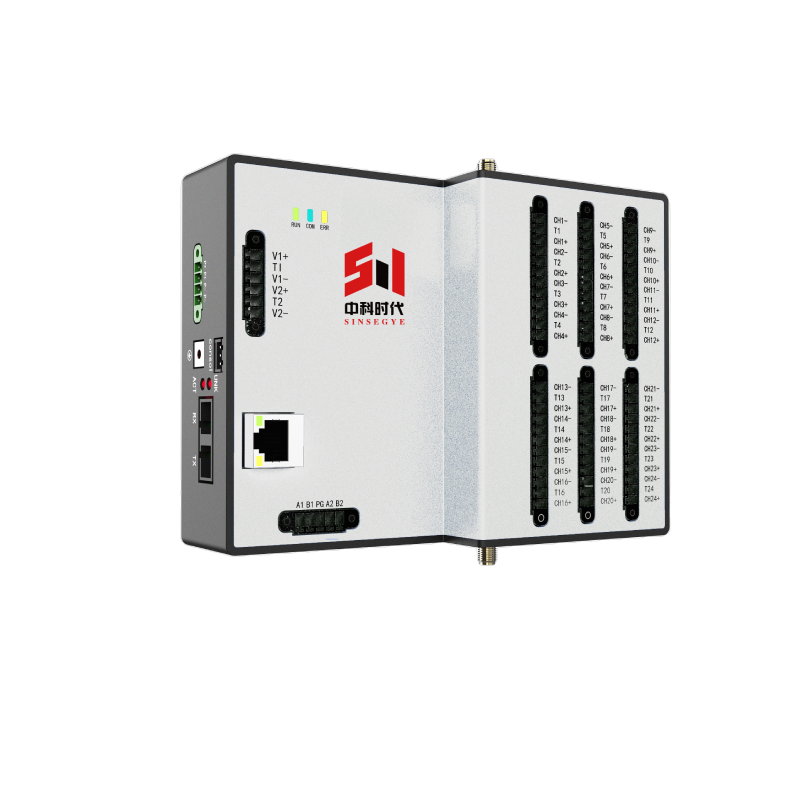

The SD-DA7008/7016 series intelligent data collector is a multi-channel state acquisition system, specifically designed for monitoring the non-steady-state operation of industrial critical equipment. The product features 8-channel, 16-channel, and 24-channel acceleration and temperature acquisition, rotational speed measurement, and slow variable acquisition. The most distinctive feature of the system is its modular design, which supports up to 24 channels of acceleration and temperature acquisition. It can also be configured as 12 channels of slow-changing physical quantity acquisition, such as pressure, temperature, voltage, and current. The product is equipped with key-phase acquisition and has configurable I/O input/output modes.

The intelligent data acquisition unit is applicable to equipment such as compressors, pumps, fans and motors. It can have an effect in industrial fields such as petroleum, chemical engineering, steel, water affairs, cement, and mining.

The product adopts a modular design: 8/16/24-channel IEPE acceleration channel acquisition, or slow variable acquisition. 24-bit ADC acquisition, 24-channel fully synchronous sampling, and a sampling rate as high as 102.4K.

Support multi-dimensional data acquisition: Support acceleration and temperature integrated sensor, eddy current displacement sensor, key phase input, and rotational speed acquisition; Supports RS485 interface, which can be connected to DCS and PLC. It comes with audio and video collection.

Meanwhile, the product is easy to install, compact in size, measuring 159*120* 57mm, and can be fixed in various ways.

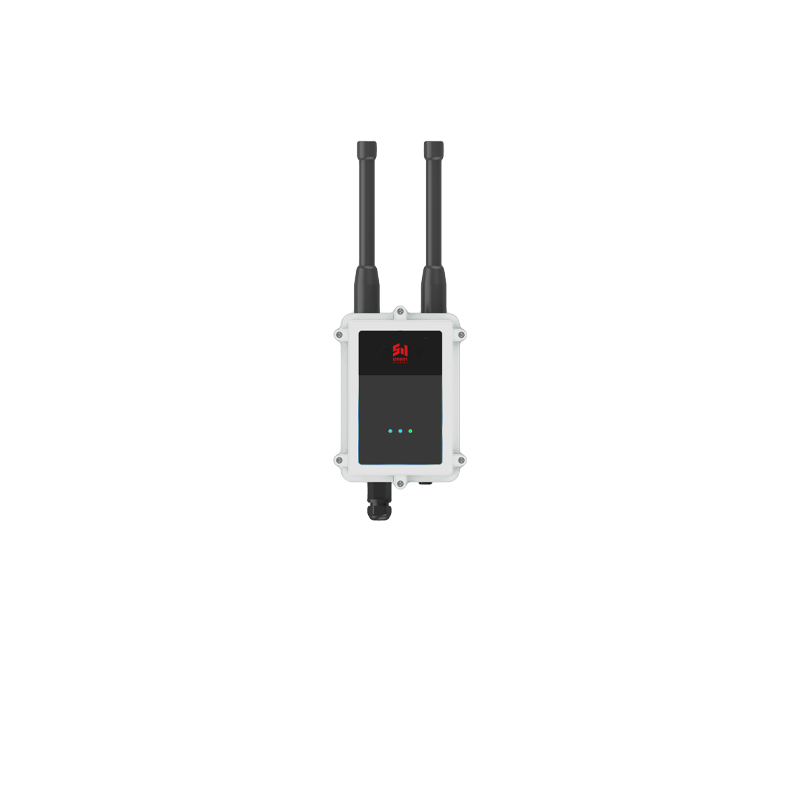

The SD-GW5000 series machine condition monitoring data receiver is an internal and external communication conversion device for machine condition monitoring diagnostic instruments. Internal communication is carried out through Zigbee wireless technology for data transmission and management, and it supports external communication forms such as WiFI, 4G and Ethernet.

The main hardware features are:

① Diversified communication transmission solutions are available to suit different industrial site conditions.

②The number of intelligent wireless diagnostic devices connected should be no more than 90.

③ Dual-processor architecture, featuring edge computing and data processing capabilities.

④ Supports communication with PLC and DCS.

⑤Under visible barrier-free conditions, the communication distance shall not be less than 300 meters.

⑥ (Optional) IP67 protection grade, flameproof explosion-proof certification.
