Tobacco packaging equipment

Industry case background

The tobacco packaging industry has long faced the dual challenges of increased cost pressure and higher production efficiency requirements. Traditional solutions rely heavily on imported PLCs and servo systems, which not only incur high costs but also have limitations in terms of functional scalability and adaptability. With the development of intelligent manufacturing, the industry urgently needs an innovative solution that can both reduce costs and improve performance.

Customer Demand

• Reduce costs by 40%
• Efficiency improvement
• Improving production quality， 7 * 24-hour continuous operation without stopping

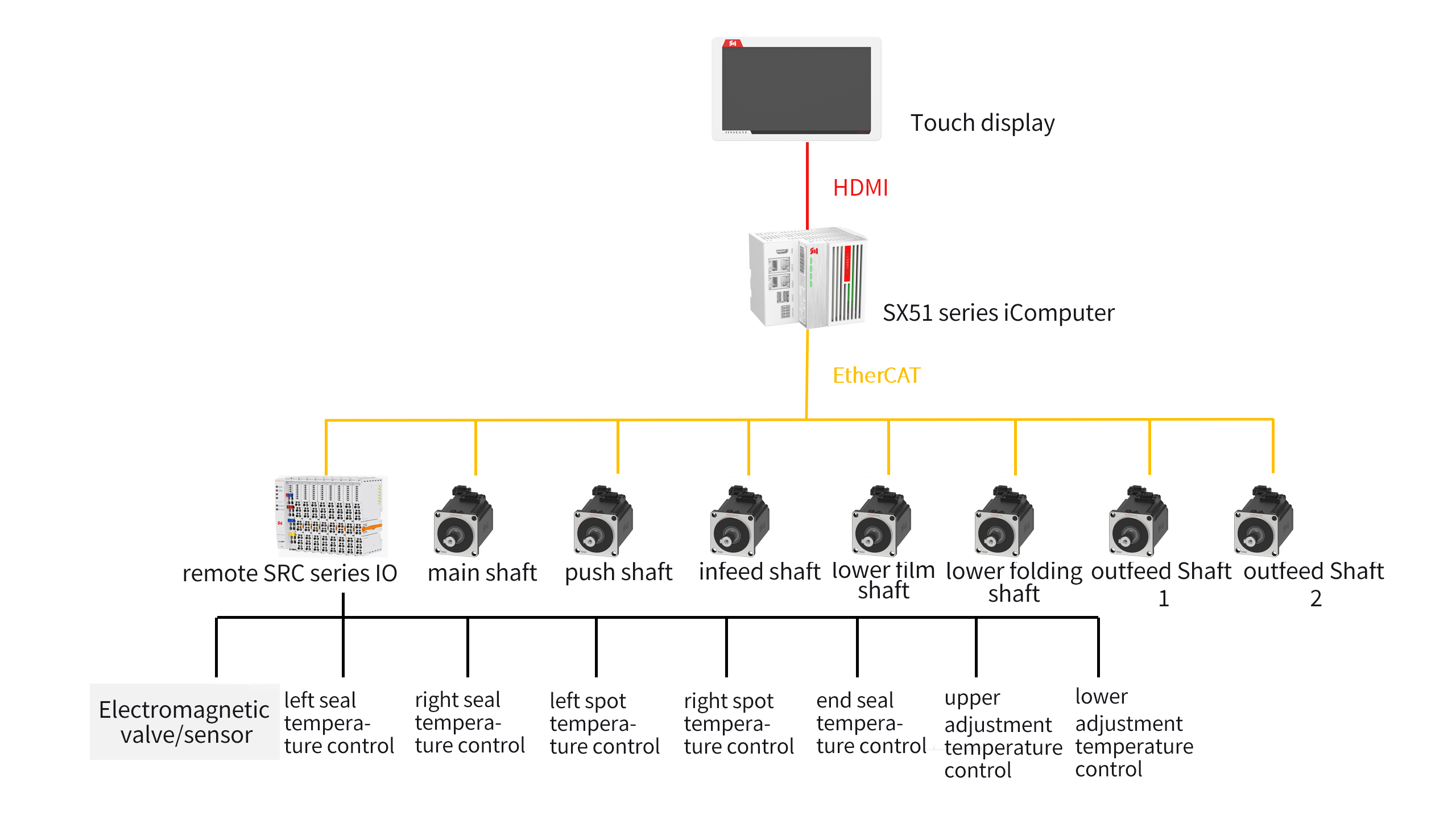

Scenario solution framework:

Characteristics of SINSEGYE's solution

Cost reduction

50% reduction in overall cost: Compared to the original imported PLC solution, the overall solution cost has significantly decreased.

Efficiency improvement

• Packaging speed increased by 16.7%: from 60 packs/minute to 70 packs/minute;
• Flexible production capacity: The upper level can be programmed, the motion curve can be modified, and the packaging speed can be optimized by adjusting parameters according to different boxes;

Technological innovation

• Integrating cam control, electronic gear, and robot control technology to achieve more precise and flexible motion control;
• Support MQTT protocol and read-write database functions to enhance communication capabilities;
• Integrated temperature control system, with control accuracy up to ± 1 ℃ range;
