SP70xx iComputer
SP70xxH
|
The SP7000H series IPC Industrial Intelligent Computer (IIC) includes the SP7000H and SP7020H models, with the SP7020H offering two additional PCIe expansion slots compared to the SP7000H. The SP7000H series features "integrated computing and control, with computing power exceeding control capabilities, and flexible allocation of computing and control resources." It perfectly inherits the high-performance hardware platform with integrated computing and control, supporting a wide range of PCIe cards such as graphics cards, network cards, serial cards, CAN cards, and more. It also supports the expansion of high-performance GPUs, is compatible with the Windows open ecosystem, and has the powerful control capabilities of a PLC. The system supports traditional logic control, motion control, and upper-level deployment of third-party complex applications, including visual algorithms. Since its launch in the first half of 2024, the SP7000H series has been widely used in industries such as 3C, semiconductors, photovoltaics, and CNC. Compared to traditional distributed control systems, the SP7000H series seamlessly integrates both upper-level and lower-level systems, simplifying installation and saving space. This integration reduces hardware deployment costs by over 30%. |
|
| Product name | 7000H | 7020H |
| Operating system | Linux+Windows10 | |
| Processor | Intel Core I5-12400 ，2.5GHz ，up to 4.4 Ghz ，TDP 65 W ，6 cores, 12 threads | |
| Memory | DDR4 3200MHz 16GB | |
| Storage | 128GB SSD + 512G SSD | |
| Network port | 7（1*i219+6*i210） | |
| Serial port | 4* COM(2*RS485/RS232+2*RS232) | |
| USB port | 4*USB 3.0+2*USB 2.0 | |
| DIO | Not support | |
| Display interface | HDMI+DP | |
| Power supply | DC 12V With switching power supply | |
| Switch | Illuminated push button switch | |
| SW terminals | 4PIN Terminal (Switch + Light) | |
| Line Out | 1*line out | |
| Graphics card expansion slots | Not support | 1*PCIEX16+1*PCIEX4 |
| Installation | Embedded | |
| Exterior dimensions | 208 (W) * 202 (D) * 133 (H) mm | |
| Storage temperature | -30~ 70℃ | |
| Operating temperature | -10~ 50℃ | |

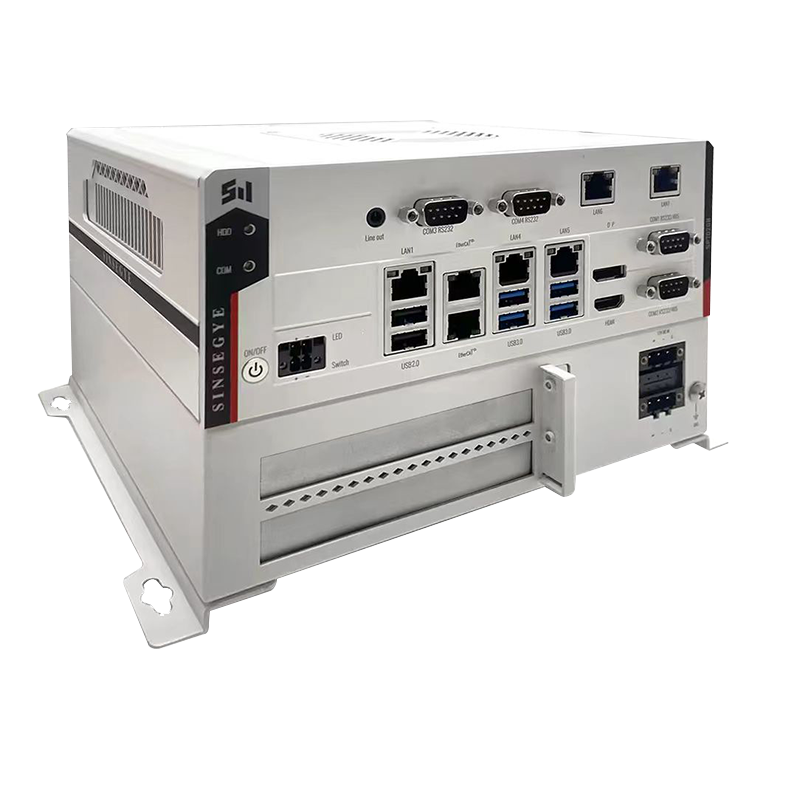

| Serial number | Interface Description | Serial number | Interface Description |
| 1 | Line out&Mic in | 2 | LAN1（i219） |
| 3 | COM3 RS232 | 4 | LAN4（i210） |
| 5 | COM4 RS232 | 6 | LAN5（i210） |
| 7 | LAN6（i210） | 8 | LAN7（i210） |
| 9 | GND | 10 | ON/OFF Push button switch |
| 11 | SWITCH switch | 12 | 12V DC IN |
| 13 | USB2.0*2 | 14 | LAN2 LAN3（i210） |
| 15 | USB3.0*2 | 16 | USB3.0*2 |
| 17 | HDMI | 18 | DP |
| 19 | COM2 RS232/485 | 20 | COM1 RS232/485 |
| 21 | WIFI Antenna holes |
 |
