High speed point butyl rubber equipment

High speed point butyl rubber equipment

The high-speed point butyl rubber equipment uses a precisely controlled butyl rubber coating system to evenly coat a layer of butyl rubber layer around the glass, achieving excellent sealing effect. This device integrates three core modules: butyl rubber coating system, flow stabilization control and metering control system, and automated coating and transmission control system, ensuring the accuracy and correctness of the coating process.

Difficulties in the control system of high-speed butyl rubber equipment:

• Three axis synchronous arc trajectory dispensing
• High response
• High synchronization

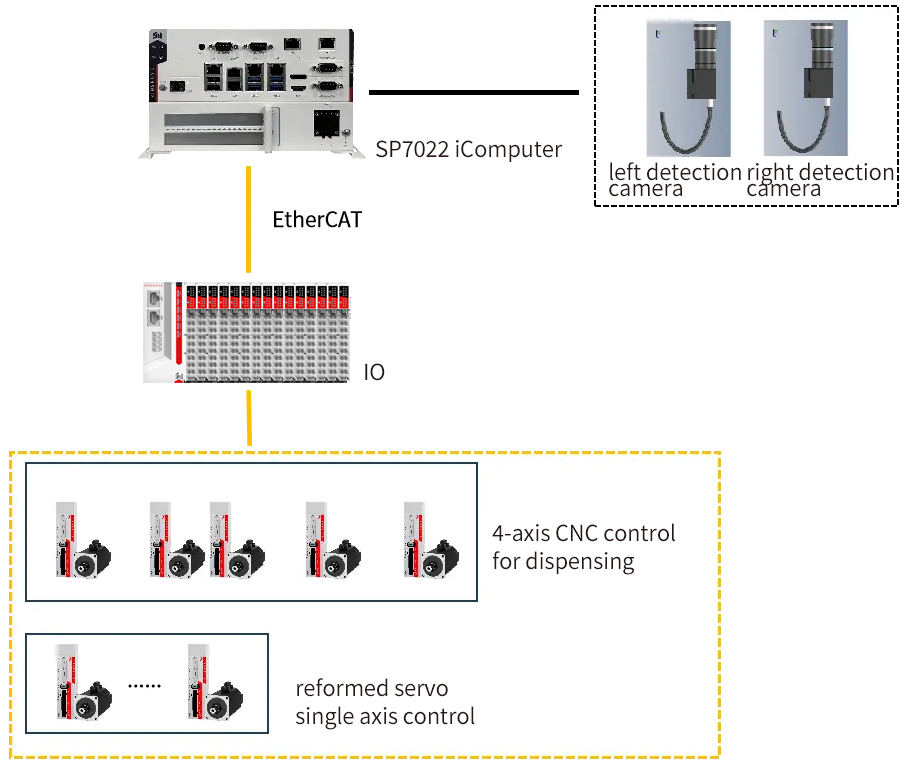

Control system architecture:

Characteristics of SINSEGYE's solution:

Integrated Control and Computation

The SP7020H iComputer runs a soft PLC and integrates APIs to achieve seamless integration of software and hardware, simplifying configuration and debugging. More importantly, the soft PLC is highly integrated, integrating functions such as motion control, logic control, data processing, and machine vision. Therefore, one intelligent machine can replace the combination of an intelligent machine and PLC. At the same time, the SP7020H iComputer is equipped with a MetaFacture unified, modular, and integrated programming platform, which helps customers quickly complete code writing, hardware configuration, fault diagnosis, equipment maintenance, and other work in one development environment. Therefore, SINSEGYE's solution not only reduces hardware costs, but also significantly reduces the number of developers required by customers through a unified IDE for programming, thereby reducing labor costs.
